前言：使用缓存进行项目优化

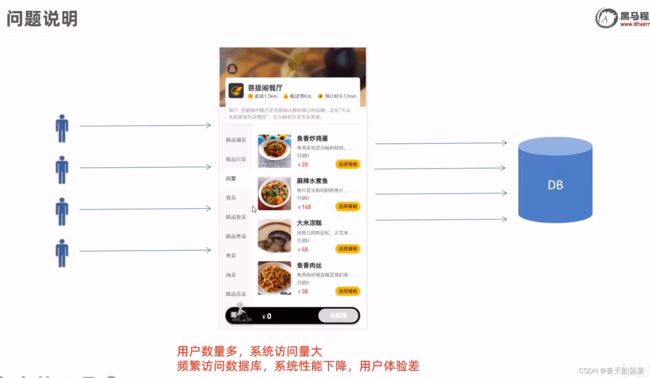

一、问题说明

二、环境搭建

2.1 Git管理代码

2.1.1 创建本地仓库

2.1.2 创建远程仓库

略。。后续都省略

2.1.3 创建分支--》推送到远程仓库

略

2.2 maven坐标



      org.springframework.boot
      spring-boot-starter-data-redis


2.3 配置文件application.yml

server:
  port: 8080
spring:
  application:
    # 应用名称 可选
    name: reggie_take_out_spuer
  datasource:
    druid:
      driver-class-name: com.mysql.cj.jdbc.Driver
      url: jdbc:mysql://localhost:3306/reggie?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true
      username: rot
      password: ru
  redis:
    host: 127.0.0.1
    port: 6379
    password: 123
    database: 0
mybatis-plus:
  configuration:
    #在映射实体或者属性时，将数据库中表名和字段名中的下划线去掉，按照驼峰命名法映射
    map-underscore-to-camel-case: true
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
  global-config:
    db-config:
      id-type: ASSIGN_ID
# 文件上传目录
reggie:
  path: D:\images\

2.4 配置类RedisConfig

package com.runa.reggie.config;

import org.springframework.cache.annotation.CachingConfigurerSupport;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.serializer.StringRedisSerializer;

@Configuration
public class RedisConfig extends CachingConfigurerSupport {
    @Bean
    public RedisTemplate redisTemplate(RedisConnectionFactory connectionFactory) {
        RedisTemplate redisTemplate = new RedisTemplate<>();
        //默认的Key序列化器为：JdkSerializationRedisSerializer
        redisTemplate.setKeySerializer(new StringRedisSerializer());
        redisTemplate.setConnectionFactory(connectionFactory);
        return redisTemplate;
    }
}

三、缓存短信验证码

3.1 实现思路

3.2 代码改造

3.2.1 UserController

package com.runa.reggie.controller;

import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.runa.reggie.common.R;
import com.runa.reggie.entity.User;
import com.runa.reggie.service.UserService;
import com.runa.reggie.utils.SMSUtils;
import com.runa.reggie.utils.ValidateCodeUtils;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpSession;
import java.util.Map;
import java.util.concurrent.TimeUnit;

@RestController
@RequestMapping("/user")
@Slf4j
public class UserController {

    @Autowired
    private UserService userService;

    @Autowired
    private RedisTemplate redisTemplate;

    /**
     * 发送手机短信验证码
     * @param user
     * @return
     */
    @PostMapping("/sendMsg")
    public R sendMsg(@RequestBody User user, HttpSession session){
        //获取手机号
        String phone = user.getPhone();

        if(StringUtils.isNotEmpty(phone)){
            //生成随机的4位验证码
            String code = ValidateCodeUtils.generateValidateCode(4).toString();
            log.info("code={}",code);

            //调用阿里云提供的短信服务API完成发送短信
            //SMSUtils.sendMessage("瑞吉外卖","",phone,code);

            //需要将生成的验证码保存到Session
//            session.setAttribute(phone,code);

            // 将生成的验证码缓存到Redis中,并且设置有效期为5分钟
            redisTemplate.opsForValue().set(phone,code,5, TimeUnit.MINUTES);

            return R.success("手机验证码短信发送成功");
        }

        return R.error("短信发送失败");
    }

    /**
     * 移动端用户登录
     * @param map
     * @param session
     * @return
     */
    @PostMapping("/login")
    public R login(@RequestBody Map map, HttpSession session){
        log.info(map.toString());

        //获取手机号
        String phone = map.get("phone").toString();

        //获取验证码
        String code = map.get("code").toString();

        //从Session中获取保存的验证码
//        Object codeInSession = session.getAttribute(phone);

        //从redis中获取缓存的验证码
        Object codeInSession = redisTemplate.opsForValue().get(phone);

        //进行验证码的比对（页面提交的验证码和Session中保存的验证码比对）
        if(codeInSession != null && codeInSession.equals(code)){
            //如果能够比对成功，说明登录成功

            LambdaQueryWrapper queryWrapper = new LambdaQueryWrapper<>();
            queryWrapper.eq(User::getPhone,phone);

            User user = userService.getOne(queryWrapper);
            if(user == null){
                //判断当前手机号对应的用户是否为新用户，如果是新用户就自动完成注册
                user = new User();
                user.setPhone(phone);
                user.setStatus(1);
                userService.save(user);
            }
            session.setAttribute("user",user.getId());

            // 如果用户登录成功，删除redis缓存的验证码
            redisTemplate.delete(phone);

            return R.success(user);
        }
        return R.error("登录失败");
    }

}

3.3 功能测试

启动后端服务、启动redis

http://localhost:8080/front/page/login.html

四、缓存菜品数据

4.1 实现思路

4.2 代码改造

4.2.1 第一步改造DishController 中list方法

package com.runa.reggie.controller;

import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.runa.reggie.common.R;
import com.runa.reggie.dto.DishDto;
import com.runa.reggie.entity.Category;
import com.runa.reggie.entity.Dish;
import com.runa.reggie.entity.DishFlavor;
import com.runa.reggie.service.CategoryService;
import com.runa.reggie.service.DishFlavorService;
import com.runa.reggie.service.DishService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.web.bind.annotation.*;

import java.util.List;
import java.util.concurrent.TimeUnit;
import java.util.stream.Collectors;

/**
 * 菜品管理
 */
@RestController
@RequestMapping("/dish")
@Slf4j
public class DishController {

    @Autowired
    private DishService dishService;

    @Autowired
    private DishFlavorService dishFlavorService;

    @Autowired
    private CategoryService categoryService;

    @Autowired
    private RedisTemplate redisTemplate;

    /**
     * 新增菜品
     * @param dishDto
     * @return
     */
    @PostMapping
    public R save(@RequestBody DishDto dishDto){
        log.info(dishDto.toString());
        dishService.saveWithFlavor(dishDto);
      return R.success("新增菜品成功");
    }

    @GetMapping("/page")
    public R page(int page, int pageSize, String name){
        // 构造分页构造器对象
        Page pageInfo = new Page<>(page, pageSize);
        Page dishDtoPage = new Page<>();

        //条件构造器
        LambdaQueryWrapper queryWrapper = new LambdaQueryWrapper<>();
        // 添加过滤条件
        queryWrapper.like(name != null,Dish::getName,name);
        // 添加排序条件
        queryWrapper.orderByDesc(Dish::getUpdateTime);

        //执行分页查询
        dishService.page(pageInfo,queryWrapper);

        // 对象拷贝
        BeanUtils.copyProperties(pageInfo, dishDtoPage,"records");
        List records = pageInfo.getRecords();
        List list = records.stream().map((item) -> {
            DishDto dishDto = new DishDto();

            BeanUtils.copyProperties(item,dishDto);
            Long categoryId = item.getCategoryId();// 分类id
            Category category = categoryService.getById(categoryId);
            String categoryName = category.getName();
            dishDto.setCategoryName(categoryName);
            return dishDto;
        }).collect(Collectors.toList());


        dishDtoPage.setRecords(list);
        return R.success(dishDtoPage);
    }


    /**
     * 根据ID 查询菜品和对应口味信息 回显
     * @param id
     * @return
     */
    @GetMapping("/{id}")
    public R get(@PathVariable Long id){
        log.info("要查询显示的菜品信息是：{}",id);
        DishDto dishDto = dishService.getByIdWithFlavor(id);
        return R.success(dishDto);
    }

    /**
     * 修改菜品
     * @param dishDto
     * @return
     */
    @PutMapping
    public R update(@RequestBody DishDto dishDto){
        log.info(dishDto.toString());
        dishService.updateWithFlavor(dishDto);
        return R.success("修改菜品成功");
    }




//    /**
//     * 根据条件查询对于菜品数据
//     * @param dish
//     * @return
//     */
//    @GetMapping("/list")
//    public R> list(Dish dish){
//
//        // 构造查询条件
//        LambdaQueryWrapper queryWrapper =new LambdaQueryWrapper<>();
//        queryWrapper.eq(dish.getCategoryId() != null,Dish::getCategoryId,dish.getCategoryId());
//        // 添加条件，查询状态为1（起售状态）的菜品
//        queryWrapper.eq(Dish::getStatus,1);
//        // 天添加排序条件
//        queryWrapper.orderByAsc(Dish::getSort).orderByDesc(Dish::getUpdateTime);
//        List list = dishService.list(queryWrapper);
//        return R.success(list);
//    }
//}

    /**
     * 根据条件查询对于菜品数据
     * @param dish
     * @return
     */
    @GetMapping("/list")
    public R> list(Dish dish){
        List dishDtoList = null;
        // 动态构造key
        String key = "dish_" + dish.getCategoryId() + "_" + dish.getStatus();

        // 先从redis获取缓存数据

        dishDtoList = (List) redisTemplate.opsForValue().get(key);

        if(dishDtoList != null){
            // 1 如果存在，直接返回，无需查询数据库
            return R.success(dishDtoList);

        }

        // 2 如果不存在，需要查询数据库，

        // 构造查询条件
        LambdaQueryWrapper queryWrapper =new LambdaQueryWrapper<>();
        queryWrapper.eq(dish.getCategoryId() != null,Dish::getCategoryId,dish.getCategoryId());
        // 添加条件，查询状态为1（起售状态）的菜品
        queryWrapper.eq(Dish::getStatus,1);
        // 天添加排序条件
        queryWrapper.orderByAsc(Dish::getSort).orderByDesc(Dish::getUpdateTime);
        List list = dishService.list(queryWrapper);

        dishDtoList = list.stream().map((item) -> {
            DishDto dishDto = new DishDto();

            BeanUtils.copyProperties(item,dishDto);
            Long categoryId = item.getCategoryId();// 分类id
            //根据id查询分类对象
            Category category = categoryService.getById(categoryId);
            if(category != null){
                String categoryName = category.getName();
                dishDto.setCategoryName(categoryName);
            }
            // 当前菜品的id
            Long dishId = item.getId();

            LambdaQueryWrapper lambdaQueryWrapper = new LambdaQueryWrapper<>();
            lambdaQueryWrapper.eq(DishFlavor::getDishId,dishId);
            List dishFlavorList = dishFlavorService.list(lambdaQueryWrapper);
            dishDto.setFlavors(dishFlavorList);

            return dishDto;
        }).collect(Collectors.toList());

        // 2-1 不存在，将查询到的菜品数据缓存到redis
        redisTemplate.opsForValue().set(key,dishDtoList,60, TimeUnit.MINUTES);

        return R.success(dishDtoList);
    }
}

4.2.2 第三步改造DishController中的save和update方法

package com.runa.reggie.controller;

import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.runa.reggie.common.R;
import com.runa.reggie.dto.DishDto;
import com.runa.reggie.entity.Category;
import com.runa.reggie.entity.Dish;
import com.runa.reggie.entity.DishFlavor;
import com.runa.reggie.service.CategoryService;
import com.runa.reggie.service.DishFlavorService;
import com.runa.reggie.service.DishService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.web.bind.annotation.*;

import java.util.List;
import java.util.Set;
import java.util.concurrent.TimeUnit;
import java.util.stream.Collectors;

/**
 * 菜品管理
 */
@RestController
@RequestMapping("/dish")
@Slf4j
public class DishController {

    @Autowired
    private DishService dishService;

    @Autowired
    private DishFlavorService dishFlavorService;

    @Autowired
    private CategoryService categoryService;

    @Autowired
    private RedisTemplate redisTemplate;

    /**
     * 新增菜品
     * @param dishDto
     * @return
     */
    @PostMapping
    public R save(@RequestBody DishDto dishDto){
        log.info(dishDto.toString());
        dishService.saveWithFlavor(dishDto);

        // 清理Redis所有菜品的缓存数据
//        Set keys = redisTemplate.keys("dish_*");
        // 清理Redis某个分类下的菜品的缓存数据
        // 动态构造key
        String key = "dish_" + dishDto.getCategoryId() + "_1";
        redisTemplate.delete(key);

      return R.success("新增菜品成功");
    }

    @GetMapping("/page")
    public R page(int page, int pageSize, String name){
        // 构造分页构造器对象
        Page pageInfo = new Page<>(page, pageSize);
        Page dishDtoPage = new Page<>();

        //条件构造器
        LambdaQueryWrapper queryWrapper = new LambdaQueryWrapper<>();
        // 添加过滤条件
        queryWrapper.like(name != null,Dish::getName,name);
        // 添加排序条件
        queryWrapper.orderByDesc(Dish::getUpdateTime);

        //执行分页查询
        dishService.page(pageInfo,queryWrapper);

        // 对象拷贝
        BeanUtils.copyProperties(pageInfo, dishDtoPage,"records");
        List records = pageInfo.getRecords();
        List list = records.stream().map((item) -> {
            DishDto dishDto = new DishDto();

            BeanUtils.copyProperties(item,dishDto);
            Long categoryId = item.getCategoryId();// 分类id
            Category category = categoryService.getById(categoryId);
            String categoryName = category.getName();
            dishDto.setCategoryName(categoryName);
            return dishDto;
        }).collect(Collectors.toList());


        dishDtoPage.setRecords(list);
        return R.success(dishDtoPage);
    }


    /**
     * 根据ID 查询菜品和对应口味信息 回显
     * @param id
     * @return
     */
    @GetMapping("/{id}")
    public R get(@PathVariable Long id){
        log.info("要查询显示的菜品信息是：{}",id);
        DishDto dishDto = dishService.getByIdWithFlavor(id);
        return R.success(dishDto);
    }

    /**
     * 修改菜品
     * @param dishDto
     * @return
     */
    @PutMapping
    public R update(@RequestBody DishDto dishDto){
        log.info(dishDto.toString());
        dishService.updateWithFlavor(dishDto);

        // 清理Redis所有菜品的缓存数据
//        Set keys = redisTemplate.keys("dish_*");
        // 清理Redis某个分类下的菜品的缓存数据
        // 动态构造key
        String key = "dish_" + dishDto.getCategoryId() + "_1";
        redisTemplate.delete(key);

        return R.success("修改菜品成功");
    }




//    /**
//     * 根据条件查询对于菜品数据
//     * @param dish
//     * @return
//     */
//    @GetMapping("/list")
//    public R> list(Dish dish){
//
//        // 构造查询条件
//        LambdaQueryWrapper queryWrapper =new LambdaQueryWrapper<>();
//        queryWrapper.eq(dish.getCategoryId() != null,Dish::getCategoryId,dish.getCategoryId());
//        // 添加条件，查询状态为1（起售状态）的菜品
//        queryWrapper.eq(Dish::getStatus,1);
//        // 天添加排序条件
//        queryWrapper.orderByAsc(Dish::getSort).orderByDesc(Dish::getUpdateTime);
//        List list = dishService.list(queryWrapper);
//        return R.success(list);
//    }
//}

    /**
     * 根据条件查询对于菜品数据
     * @param dish
     * @return
     */
    @GetMapping("/list")
    public R> list(Dish dish){
        List dishDtoList = null;
        // 动态构造key
        String key = "dish_" + dish.getCategoryId() + "_" + dish.getStatus();

        // 先从redis获取缓存数据

        dishDtoList = (List) redisTemplate.opsForValue().get(key);

        if(dishDtoList != null){
            // 1 如果存在，直接返回，无需查询数据库
            return R.success(dishDtoList);

        }

        // 2 如果不存在，需要查询数据库，

        // 构造查询条件
        LambdaQueryWrapper queryWrapper =new LambdaQueryWrapper<>();
        queryWrapper.eq(dish.getCategoryId() != null,Dish::getCategoryId,dish.getCategoryId());
        // 添加条件，查询状态为1（起售状态）的菜品
        queryWrapper.eq(Dish::getStatus,1);
        // 天添加排序条件
        queryWrapper.orderByAsc(Dish::getSort).orderByDesc(Dish::getUpdateTime);
        List list = dishService.list(queryWrapper);

        dishDtoList = list.stream().map((item) -> {
            DishDto dishDto = new DishDto();

            BeanUtils.copyProperties(item,dishDto);
            Long categoryId = item.getCategoryId();// 分类id
            //根据id查询分类对象
            Category category = categoryService.getById(categoryId);
            if(category != null){
                String categoryName = category.getName();
                dishDto.setCategoryName(categoryName);
            }
            // 当前菜品的id
            Long dishId = item.getId();

            LambdaQueryWrapper lambdaQueryWrapper = new LambdaQueryWrapper<>();
            lambdaQueryWrapper.eq(DishFlavor::getDishId,dishId);
            List dishFlavorList = dishFlavorService.list(lambdaQueryWrapper);
            dishDto.setFlavors(dishFlavorList);

            return dishDto;
        }).collect(Collectors.toList());

        // 2-1 不存在，将查询到的菜品数据缓存到redis
        redisTemplate.opsForValue().set(key,dishDtoList,60, TimeUnit.MINUTES);

        return R.success(dishDtoList);
    }
}

4.3 功能测试

http://localhost:8080/front/page/login.html

http://localhost:8080/backend/index.html



五、Spring Cache

5.1 Spring Cache介绍

5.2 Spring Cache常用注解

5.3 Spring Cache使用方式

 5.3.1 pom

  4.0.0

  com.runa
  reggie_take_out_spuer
  1.0-SNAPSHOT
  jar


    org.springframework.boot
    spring-boot-starter-parent
    2.4.5



  reggie_take_out_spuer
  http://maven.apache.org


    UTF-8
    1.8





      com.aliyun
      aliyun-java-sdk-core
      4.5.16


      com.aliyun
      aliyun-java-sdk-dysmsapi
      2.1.0


      org.springframework.boot
      spring-boot-starter



      org.springframework.boot
      spring-boot-starter-test
      test



      org.springframework.boot
      spring-boot-starter-web
      compile



      com.baomidou
      mybatis-plus-boot-starter
      3.4.2



      org.projectlombok
      lombok
      1.18.20



      com.alibaba
      fastjson
      1.2.76



      commons-lang
      commons-lang
      2.6



      mysql
      mysql-connector-java
      runtime



      com.alibaba
      druid-spring-boot-starter
      1.1.23



      junit
      junit
      3.8.1
      test




      org.springframework.boot
      spring-boot-starter-data-redis




      org.springframework.boot
      spring-boot-starter-cache








        org.springframework.boot
        spring-boot-maven-plugin
        2.4.5




六、缓存套餐数据

6.1 实现思路

6.2 代码改造

 6.2.1 pom 坐标

  4.0.0

  com.runa
  reggie_take_out_spuer
  1.0-SNAPSHOT
  jar


    org.springframework.boot
    spring-boot-starter-parent
    2.4.5



  reggie_take_out_spuer
  http://maven.apache.org


    UTF-8
    1.8





      com.aliyun
      aliyun-java-sdk-core
      4.5.16


      com.aliyun
      aliyun-java-sdk-dysmsapi
      2.1.0


      org.springframework.boot
      spring-boot-starter



      org.springframework.boot
      spring-boot-starter-test
      test



      org.springframework.boot
      spring-boot-starter-web
      compile



      com.baomidou
      mybatis-plus-boot-starter
      3.4.2



      org.projectlombok
      lombok
      1.18.20



      com.alibaba
      fastjson
      1.2.76



      commons-lang
      commons-lang
      2.6



      mysql
      mysql-connector-java
      runtime



      com.alibaba
      druid-spring-boot-starter
      1.1.23



      junit
      junit
      3.8.1
      test




      org.springframework.boot
      spring-boot-starter-data-redis




      org.springframework.boot
      spring-boot-starter-cache








        org.springframework.boot
        spring-boot-maven-plugin
        2.4.5




6.2.2 application.yml配置缓存数据过期时间

server:
  port: 8080
spring:
  application:
    # 应用名称 可选
    name: reggie_take_out_spuer
  datasource:
    druid:
      driver-class-name: com.mysql.cj.jdbc.Driver
      url: jdbc:mysql://localhost:3306/reggie?serverTimezone=Asia/Shanghai&useUnicode=true&characterEncoding=utf-8&zeroDateTimeBehavior=convertToNull&useSSL=false&allowPublicKeyRetrieval=true
      username: root
      password: runa#2050
  redis:
    host: 127.0.0.1
    port: 6379
    password: 123456
    database: 0
  cache:
    redis:
      time-to-live: 1800000  # 设置缓存数据的过期时间
mybatis-plus:
  configuration:
    #在映射实体或者属性时，将数据库中表名和字段名中的下划线去掉，按照驼峰命名法映射
    map-underscore-to-camel-case: true
    log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
  global-config:
    db-config:
      id-type: ASSIGN_ID
# 文件上传目录
reggie:
  path: D:\images\

6.2.3 开启缓存注解功能 ReggieApplication



package com.runa.reggie;

import lombok.extern.slf4j.Slf4j;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.web.servlet.ServletComponentScan;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.transaction.annotation.EnableTransactionManagement;

@Slf4j
@SpringBootApplication
@ServletComponentScan
@EnableTransactionManagement
@EnableCaching  // 开启spring Cache注解方式的缓存功能
public class ReggieApplication {
    public static void main(String[] args) {
        SpringApplication.run(ReggieApplication.class,args);
        log.info("项目启动成功~~~");
    }
}

 6.2.4  R实现 Serializable 接口

package com.runa.reggie.common;

import lombok.Data;

import java.io.Serializable;
import java.util.HashMap;
import java.util.Map;


/**
 * 通用返回结果，服务端响应的数据最终都会封装成此对象
 * @param
 */
@Data
public class R implements Serializable {

    private Integer code; //编码：1成功，0和其它数字为失败

    private String msg; //错误信息

    private T data; //数据

    private Map map = new HashMap(); //动态数据

    public static  R success(T object) {
        R r = new R();
        r.data = object;
        r.code = 1;
        return r;
    }

    public static  R error(String msg) {
        R r = new R();
        r.msg = msg;
        r.code = 0;
        return r;
    }

    public R add(String key, Object value) {
        this.map.put(key, value);
        return this;
    }

}

 6.2.5 在SetmealController的list方法加入@Cacheable注解

package com.runa.reggie.controller;


import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.runa.reggie.common.R;
import com.runa.reggie.dto.SetmealDto;
import com.runa.reggie.entity.Category;
import com.runa.reggie.entity.Setmeal;
import com.runa.reggie.service.CategoryService;
import com.runa.reggie.service.SetmealDishService;
import com.runa.reggie.service.SetmealService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.web.bind.annotation.*;

import java.util.List;
import java.util.stream.Collectors;

@RestController
@RequestMapping("/setmeal")
@Slf4j
public class SetmealController {

    @Autowired
    private SetmealService setmealService;

    @Autowired
    private CategoryService categoryService;

    @Autowired
    private SetmealDishService setmealDishService;

    /**
     * 新增套餐
     * @param setmealDto
     * @return
     */
    @PostMapping
    public R save(@RequestBody SetmealDto setmealDto){
        log.info("套餐信息：{}",setmealDto);

        setmealService.saveWithDish(setmealDto);

        return R.success("新增套餐成功");
    }

    /**
     * 套餐分页查询
     * @param page
     * @param pageSize
     * @param name
     * @return
     */
    @GetMapping("/page")
    public R page(int page, int pageSize, String name){
        //分页构造器对象
        Page pageInfo = new Page<>(page,pageSize);
        Page dtoPage = new Page<>();

        LambdaQueryWrapper queryWrapper = new LambdaQueryWrapper<>();
        //添加查询条件，根据name进行like模糊查询
        queryWrapper.like(name != null,Setmeal::getName,name);
        //添加排序条件，根据更新时间降序排列
        queryWrapper.orderByDesc(Setmeal::getUpdateTime);

        setmealService.page(pageInfo,queryWrapper);

        //对象拷贝
        BeanUtils.copyProperties(pageInfo,dtoPage,"records");
        List records = pageInfo.getRecords();

        List list = records.stream().map((item) -> {
            SetmealDto setmealDto = new SetmealDto();
            //对象拷贝
            BeanUtils.copyProperties(item,setmealDto);
            //分类id
            Long categoryId = item.getCategoryId();
            //根据分类id查询分类对象
            Category category = categoryService.getById(categoryId);
            if(category != null){
                //分类名称
                String categoryName = category.getName();
                setmealDto.setCategoryName(categoryName);
            }
            return setmealDto;
        }).collect(Collectors.toList());

        dtoPage.setRecords(list);
        return R.success(dtoPage);
    }

    /**
     * 删除套餐
     * @param ids
     * @return
     */
    @DeleteMapping
    public R delete(@RequestParam List ids){
        log.info("ids:{}",ids);

        setmealService.removeWithDish(ids);

        return R.success("套餐数据删除成功");
    }

    /**
     * 根据条件查询套餐数据
     * @param setmeal
     * @return
     */
    @GetMapping("/list")
    @Cacheable(value = "setmealCache", key = "#setmeal.categoryId + '_' + #setmeal.status")
    public R> list(Setmeal setmeal){
        LambdaQueryWrapper queryWrapper = new LambdaQueryWrapper<>();
        queryWrapper.eq(setmeal.getCategoryId() != null,Setmeal::getCategoryId,setmeal.getCategoryId());
        queryWrapper.eq(setmeal.getStatus() != null,Setmeal::getStatus,setmeal.getStatus());
        queryWrapper.orderByDesc(Setmeal::getUpdateTime);
        List list = setmealService.list(queryWrapper);
        return R.success(list);

    }

}

6.2.6 在SetmealController的delete方法加入@CacheEvict注解

package com.runa.reggie.controller;


import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.runa.reggie.common.R;
import com.runa.reggie.dto.SetmealDto;
import com.runa.reggie.entity.Category;
import com.runa.reggie.entity.Setmeal;
import com.runa.reggie.service.CategoryService;
import com.runa.reggie.service.SetmealDishService;
import com.runa.reggie.service.SetmealService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cache.annotation.CacheEvict;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.web.bind.annotation.*;

import java.util.List;
import java.util.stream.Collectors;

@RestController
@RequestMapping("/setmeal")
@Slf4j
public class SetmealController {

    @Autowired
    private SetmealService setmealService;

    @Autowired
    private CategoryService categoryService;

    @Autowired
    private SetmealDishService setmealDishService;

    /**
     * 新增套餐
     * @param setmealDto
     * @return
     */
    @PostMapping
    public R save(@RequestBody SetmealDto setmealDto){
        log.info("套餐信息：{}",setmealDto);

        setmealService.saveWithDish(setmealDto);

        return R.success("新增套餐成功");
    }

    /**
     * 套餐分页查询
     * @param page
     * @param pageSize
     * @param name
     * @return
     */
    @GetMapping("/page")
    public R page(int page, int pageSize, String name){
        //分页构造器对象
        Page pageInfo = new Page<>(page,pageSize);
        Page dtoPage = new Page<>();

        LambdaQueryWrapper queryWrapper = new LambdaQueryWrapper<>();
        //添加查询条件，根据name进行like模糊查询
        queryWrapper.like(name != null,Setmeal::getName,name);
        //添加排序条件，根据更新时间降序排列
        queryWrapper.orderByDesc(Setmeal::getUpdateTime);

        setmealService.page(pageInfo,queryWrapper);

        //对象拷贝
        BeanUtils.copyProperties(pageInfo,dtoPage,"records");
        List records = pageInfo.getRecords();

        List list = records.stream().map((item) -> {
            SetmealDto setmealDto = new SetmealDto();
            //对象拷贝
            BeanUtils.copyProperties(item,setmealDto);
            //分类id
            Long categoryId = item.getCategoryId();
            //根据分类id查询分类对象
            Category category = categoryService.getById(categoryId);
            if(category != null){
                //分类名称
                String categoryName = category.getName();
                setmealDto.setCategoryName(categoryName);
            }
            return setmealDto;
        }).collect(Collectors.toList());

        dtoPage.setRecords(list);
        return R.success(dtoPage);
    }

    /**
     * 删除套餐
     * @param ids
     * @return
     */
    @DeleteMapping
    @CacheEvict(value = "setmealCache" , allEntries = true)
    public R delete(@RequestParam List ids){
        log.info("ids:{}",ids);

        setmealService.removeWithDish(ids);

        return R.success("套餐数据删除成功");
    }

    /**
     * 根据条件查询套餐数据
     * @param setmeal
     * @return
     */
    @GetMapping("/list")
    @Cacheable(value = "setmealCache", key = "#setmeal.categoryId + '_' + #setmeal.status")
    public R> list(Setmeal setmeal){
        LambdaQueryWrapper queryWrapper = new LambdaQueryWrapper<>();
        queryWrapper.eq(setmeal.getCategoryId() != null,Setmeal::getCategoryId,setmeal.getCategoryId());
        queryWrapper.eq(setmeal.getStatus() != null,Setmeal::getStatus,setmeal.getStatus());
        queryWrapper.orderByDesc(Setmeal::getUpdateTime);
        List list = setmealService.list(queryWrapper);
        return R.success(list);

    }

}

6.2.7 在SetmealController的save方法加入@CacheEvict注解

package com.runa.reggie.controller;


import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.plugins.pagination.Page;
import com.runa.reggie.common.R;
import com.runa.reggie.dto.SetmealDto;
import com.runa.reggie.entity.Category;
import com.runa.reggie.entity.Setmeal;
import com.runa.reggie.service.CategoryService;
import com.runa.reggie.service.SetmealDishService;
import com.runa.reggie.service.SetmealService;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.BeanUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cache.annotation.CacheEvict;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.web.bind.annotation.*;

import java.util.List;
import java.util.stream.Collectors;

@RestController
@RequestMapping("/setmeal")
@Slf4j
public class SetmealController {

    @Autowired
    private SetmealService setmealService;

    @Autowired
    private CategoryService categoryService;

    @Autowired
    private SetmealDishService setmealDishService;

    /**
     * 新增套餐
     * @param setmealDto
     * @return
     */
    @PostMapping
    @CacheEvict(value = "setmealCache" , allEntries = true)
    public R save(@RequestBody SetmealDto setmealDto){
        log.info("套餐信息：{}",setmealDto);

        setmealService.saveWithDish(setmealDto);

        return R.success("新增套餐成功");
    }

    /**
     * 套餐分页查询
     * @param page
     * @param pageSize
     * @param name
     * @return
     */
    @GetMapping("/page")
    public R page(int page, int pageSize, String name){
        //分页构造器对象
        Page pageInfo = new Page<>(page,pageSize);
        Page dtoPage = new Page<>();

        LambdaQueryWrapper queryWrapper = new LambdaQueryWrapper<>();
        //添加查询条件，根据name进行like模糊查询
        queryWrapper.like(name != null,Setmeal::getName,name);
        //添加排序条件，根据更新时间降序排列
        queryWrapper.orderByDesc(Setmeal::getUpdateTime);

        setmealService.page(pageInfo,queryWrapper);

        //对象拷贝
        BeanUtils.copyProperties(pageInfo,dtoPage,"records");
        List records = pageInfo.getRecords();

        List list = records.stream().map((item) -> {
            SetmealDto setmealDto = new SetmealDto();
            //对象拷贝
            BeanUtils.copyProperties(item,setmealDto);
            //分类id
            Long categoryId = item.getCategoryId();
            //根据分类id查询分类对象
            Category category = categoryService.getById(categoryId);
            if(category != null){
                //分类名称
                String categoryName = category.getName();
                setmealDto.setCategoryName(categoryName);
            }
            return setmealDto;
        }).collect(Collectors.toList());

        dtoPage.setRecords(list);
        return R.success(dtoPage);
    }

    /**
     * 删除套餐
     * @param ids
     * @return
     */
    @DeleteMapping
    @CacheEvict(value = "setmealCache" , allEntries = true)
    public R delete(@RequestParam List ids){
        log.info("ids:{}",ids);

        setmealService.removeWithDish(ids);

        return R.success("套餐数据删除成功");
    }

    /**
     * 根据条件查询套餐数据
     * @param setmeal
     * @return
     */
    @GetMapping("/list")
    @Cacheable(value = "setmealCache", key = "#setmeal.categoryId + '_' + #setmeal.status")
    public R> list(Setmeal setmeal){
        LambdaQueryWrapper queryWrapper = new LambdaQueryWrapper<>();
        queryWrapper.eq(setmeal.getCategoryId() != null,Setmeal::getCategoryId,setmeal.getCategoryId());
        queryWrapper.eq(setmeal.getStatus() != null,Setmeal::getStatus,setmeal.getStatus());
        queryWrapper.orderByDesc(Setmeal::getUpdateTime);
        List list = setmealService.list(queryWrapper);
        return R.success(list);

    }

}

6.3 功能测试

http://localhost:8080/front/page/login.html

http://localhost:8080/backend/index.html
