【AUTOSAR】BMS开发实际项目讲解(六)----BMS软件架构设计

    1. Terms and Abbreviation

No.

Terms/Abbreviation

Explanation

1

SRS

Software Requirement Specification

2

TSR

Technical Safety Requirements

3

FSR

Functional Safety Requirements

4

IC

Integrated Circuit

5

HIS

Hardware Software Interface

6

ID

Identification

7

FS

Function Safety

8

NFS

Non-Function Safety

9

SA

Software Architecture

10

DET

Default Error Tracer (AUTOSAR) / Diagnostic Exception Tracer (This document)

11

NM

CAN Network Management

12

13

表1

    1. References
      1. Project Reference Documents

No.

Name

Version

Date

1

DHEV-FS-T6-61 SW Safety Requirements Specification

1.2

2019/9/15

2

DHEV-FS-T4-62 System Design Specification

2.0

2019/1/5

3

DHEV-FS-T5-32 HW-SW Interface Specification

02

表2

      1. Outside Reference Documents

No.

Name

Version

Date

1

ISO 26262-6 Road vehicles — Functional safety — Part 6: Product development at the software level

Second edition

2018-12

2

3

表3

  1. Assumptions and Constrains

主 CPU: Infineon TC275TP

硬件约束:PFLASH: 4M Byte、Data Flash: 384K Byte、DSPR: 120K Byte、PSPR: 20K Byte

内存消耗:整体使用率≤ 80%,对于栈:正常运行≤ 70%, 压力测试≤85%

CPU负载约束:正常运行≤ 70%, 压力测试≤ 85%

软件运行环境约束:运行在RTOS环境下,使用符合AUTOSAR标准的操作系统RTA-OS

时间约束:在RTOS环境下,各任务执行的超时时间误差≤ 5%,功能安全需求相关任务执行的时间误差≤ 2%

从 CPU: Freescale MM9Z1_638

硬件约束:Flash: 128 kByte、RAM: 8.0 kByte、EEPROM: 4.0 kByte

内存消耗:整体使用率≤ 80%,对于栈:正常运行≤ 70%, 压力测试≤85%

CPU负载约束:正常运行≤ 70%, 压力测试≤ 85%

软件运行环境约束:无RTOS的前后台运行环境

时间约束:在前后台运行环境下,各周期性调用的函数执行的超时时间误差≤ 5%,功能安全需求相关周期性调用的函数执行的时间误差≤ 2%

  1. Compile Environment

Master CPU: TASKING VX-toolset for TriCore v4.2r2

Slave CPU: CodeWarrior Development Studio for Microcontrollers v10.7

  1. Software Architecture Design
    1. Software Architecture Overview

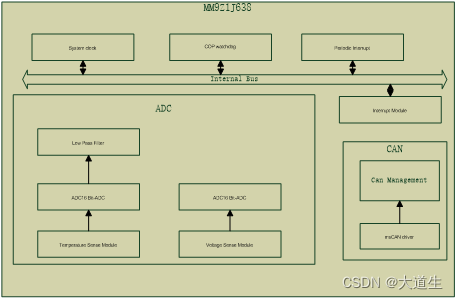

      1. Software Architecture Diagram (Slave CPU)

【AUTOSAR】BMS开发实际项目讲解(六)----BMS软件架构设计_第1张图片



      1. Layer & Module definition (Slave CPU)

Module

Description

ASIL

Comments

ADC

Analog to Digital converter

ASIL A

CAN

Controller Area Network

ASIL A

Interrupt module

/

ASIL A

Period interrupt

/

ASIL A

COP Watchdog

/

ASIL A

System Clock

/

ASIL A
