HDLBits练习——Dualedge

You’re familiar with flip-flops that are triggered on the positive edge of the clock, or negative edge of the clock. A dual-edge triggered flip-flop is triggered on both edges of the clock. However, FPGAs don’t have dual-edge triggered flip-flops, and always @(posedge clk or negedge clk) is not accepted as a legal sensitivity list.

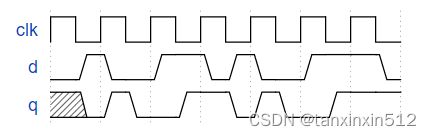

Build a circuit that functionally behaves like a dual-edge triggered flip-flop:

(Note: It’s not necessarily perfectly equivalent: The output of flip-flops have no glitches, but a larger combinational circuit that emulates this behaviour might. But we’ll ignore this detail here.)

---

前言

两个输入，包括一个时钟clk，一个输入信号d；一个输出信号q。

代码

module top_module
