深入理解 Spring 中的 Bean 加载过程

摘要
Spring 框架是一个强大的 Java 开发框架，其核心之一是对依赖注入（Dependency Injection）的支持。在 Spring 中，Bean 是应用程序的基本构建块之一，它们由 Spring 容器加载、管理和协调。本文将深入探讨 Spring 中 Bean 的加载过程，从解析配置文件到实例化Bean 的全过程。

正文

一、准备工作

​ 在开始之前，我们需要明确一些 Spring 框架的基本概念。

1. Bean：在 Spring 中，构成你的应用程序的骨干并由 Spring IoC 容器管理的对象被称为 Bean。Bean 是一个由 Spring IoC 容器实例化、组装和管理的对象。
2. BeanFactory ：负责管理 Bean 的容器，通过 Bean 工厂可以获取、创建和销毁 Bean。
3. ApplicationContext ：是 BeanFactory 的一个具体实现，提供了更多的功能和特性，如国际化、事件发布和 AOP 等。org.springframework.context.ApplicationContext 接口代表 Spring IoC 容器，负责实例化、配置和组装bean。
4. BeanDefinition：它是描述 Bean 的元数据，包括 Bean 的类型、依赖关系和配置信息等。在源码中，BeanDefinition 通常使用类似HashMap 的数据结构进行存储。

二、配置Bean

容器通过读取配置元数据来获得关于要实例化、配置和组装哪些对象的指示。配置元数据以 XML、Java 注解或 Java 代码表示。它可以让你表达构成你的应用程序的对象以及这些对象之间丰富的相互依赖关系。

配置方式有：

• 基于 XML 格式：基于XML的配置元数据将这些Bean配置为顶层 元素内的 元素。
• 基于 Java 配置：通常使用 @Configuration 类中的 @Bean 注解的方法

以基于 XML 的配置为例：

<beans xmlns="http://www.springframework.org/schema/beans"
	   xmlns:aop="http://www.springframework.org/schema/aop"
	   xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	   xsi:schemaLocation="
	    http://www.springframework.org/schema/beans
        https://www.springframework.org/schema/beans/spring-beans.xsd
        http://www.springframework.org/schema/aop
        https://www.springframework.org/schema/aop/spring-aop.xsd
">


	<bean id="myBean" class="com.core.MyBean">
		<property name="TomBean" ref="tomBean"/>
	bean>
	<bean id="tomBean" class="com.core.TomBean">
		<property name="MyBean" ref="myBean"/>
	bean>


	<bean id="myBeanFactoryPostProcessor" class="com.core.MyBeanFactoryPostProcessor"/>


	<bean id="myBeanPostProcessor" class="com.core.MyBeanPostProcessor"/>

beans>

id 属性是一个字符串，用于识别单个Bean定义。

class 属性定义了 Bean 的类型，并使用类的全路径名。

property name 元素指的是 JavaBean 属性的名称，而 ref 元素指的是另一个Bean定义的名称。id 和 ref 元素之间的这种联系表达了协作对象之间的依赖关系。

三、读取配置文件

提供给 ApplicationContext 构造函数的一条或多条路径是资源字符串，它让容器从各种外部资源（如本地文件系统、Java CLASSPATH 等）加载配置元数据。

ApplicationContext applicationContext = new ClassPathXmlApplicationContext("classpath:applicationContext.xml");

Spring中是如何加载 XML 配置文件的呢？进入方法内

public ClassPathXmlApplicationContext(
			String[] configLocations, boolean refresh, @Nullable ApplicationContext parent)
			throws BeansException {
		// 初始化父类
		super(parent);
		// 设置本地配置信息
		setConfigLocations(configLocations);
		// 完成Spring容器的初始化
		if (refresh) {
			refresh();
		}
	}

四、Spring容器初始化

这里重点关注 refresh() 方法，该方法实际是调用的父类 AbstractApplicationContext 的方法。

public void refresh() throws BeansException, IllegalStateException {
		// 对象锁加锁
		synchronized (this.startupShutdownMonitor) {
			StartupStep contextRefresh = this.applicationStartup.start("spring.context.refresh");

			// Prepare this context for refreshing.
			/**
			 * 开启活跃状态，撤销关闭状态
			 * 验证环境信息里一些必须存在的属性等
			 */
			prepareRefresh();

			// Tell the subclass to refresh the internal bean factory.
			/**
			 * 获取 BeanFactory；默认实现是 DefaultListableBeanFactory
			 * 加载 BeanDefinition 并注册到 BeanDefinitionRegistry
			 */
			ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();

			// Prepare the bean factory for use in this context.
			/**
			 * BeanFactory 的预准备工作（BeanFactory进行一些设置，比如 context 的类加载器等）
			 */
			prepareBeanFactory(beanFactory);

			try {
				// Allows post-processing of the bean factory in context subclasses.
				/**
				 * BeanFactory 准备工作完成后进行的后置处理工作
				 */
				postProcessBeanFactory(beanFactory);

				StartupStep beanPostProcess = this.applicationStartup.start("spring.context.beans.post-process");
				// Invoke factory processors registered as beans in the context.
				/**
				 * 实例化实现了 BeanFactoryPostProcessor 接口的 Bean，并调用接口方法
				 */
				invokeBeanFactoryPostProcessors(beanFactory);

				// Register bean processors that intercept bean creation.
				/**
				 * 注册 BeanPostProcessor，在创建 bean 的前后等执行
				 */
				registerBeanPostProcessors(beanFactory);
				beanPostProcess.end();

				// Initialize message source for this context.
				/**
				 * 初始化 MessageSource 组件（做国际化功能；消息绑定，消息解析）
				 */
				initMessageSource();

				// Initialize event multicaster for this context.
				/**
				 * 初始化事件派发器
				 */
				initApplicationEventMulticaster();

				// Initialize other special beans in specific context subclasses.
				/**
				 * 子类重写该方法，在容器刷新的时候可以自定义逻辑；如创建 Tomcat, Jetty等 WEB 服务器
				 */
				onRefresh();

				// Check for listener beans and register them.
				/**
				 * 注册应用的监听器。就是注册实现了 ApplicationListener 接口的监听器 bean
				 */
				registerListeners();

				// Instantiate all remaining (non-lazy-init) singletons.
				/**
				 * 初始化所有剩下的非懒汉式加载的单例 bean
				 * 初始化创建非懒加载方式的单例 Bean 实例（未设置属性）
				 * 填充属性
				 * 初始化方法调用（比如调用 afterPropertiesSet方法、init-method方法）
				 * 调用 BeanPostProcessor (后置处理器)对实例 bean 进行后置处理
				 */
				finishBeanFactoryInitialization(beanFactory);

				// Last step: publish corresponding event.
				/**
				 * 完成 context 的刷新。主要调用 LifecycleProcessor 的 onRefresh()方法，并且发布事件（ContextRefreshEvent）
				 */
				finishRefresh();
			}

			catch (BeansException ex) {
				if (logger.isWarnEnabled()) {
					logger.warn("Exception encountered during context initialization - " +
							"cancelling refresh attempt: " + ex);
				}

				// Destroy already created singletons to avoid dangling resources.
				destroyBeans();

				// Reset 'active' flag.
				cancelRefresh(ex);

				// Propagate exception to caller.
				throw ex;
			}

			finally {
				// Reset common introspection caches in Spring's core, since we
				// might not ever need metadata for singleton beans anymore...
				resetCommonCaches();
				contextRefresh.end();
			}
		}
	}

4.1 获取beanFactory

进入 obtainFreshBeanFactory() 方法，该方法也是AbstractApplicationContext 中的方法

protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
   refreshBeanFactory();
   return getBeanFactory();
}

4.1.1 刷新BeanFactory

进入 refreshBeanFactory() 方法，是AbstractApplicationContext 实现类 AbstractRefreshableApplicationContext 中的方法

/**
 * 此实现执行此上下文的底层 bean 工厂的实际刷新，关闭以前的 bean 工厂（如果有）并为上下文生命周期
 * 的下一阶段初始化一个新的 bean 工厂
 */
protected final void refreshBeanFactory() throws BeansException {
   if (hasBeanFactory()) {
      destroyBeans();
      closeBeanFactory();
   }
   try {
       // 重新创建一个beanFactory
      DefaultListableBeanFactory beanFactory = createBeanFactory();
       // 设置序列号id
      beanFactory.setSerializationId(getId());
       // 定制化beanFactory，设置相关属性
      customizeBeanFactory(beanFactory);
       // 加载beanDefinition
      loadBeanDefinitions(beanFactory);
      this.beanFactory = beanFactory;
   }
   catch (IOException ex) {
      throw new ApplicationContextException("I/O error parsing bean definition source for " + getDisplayName(), ex);
   }
}

4.1.2 加载BeanDefinitions

进入 loadBeanDefinitions(beanFactory) ，是AbstractXmlApplicationContext类中的方法

protected void loadBeanDefinitions(DefaultListableBeanFactory beanFactory) throws BeansException, IOException {
   // 新建一个 XmlBeanDefinitionReader 用于读取 beanDefinition
   XmlBeanDefinitionReader beanDefinitionReader = new XmlBeanDefinitionReader(beanFactory);

   // 配置 XmlBeanDefinitionReader
   beanDefinitionReader.setEnvironment(this.getEnvironment());
   beanDefinitionReader.setResourceLoader(this);
   beanDefinitionReader.setEntityResolver(new ResourceEntityResolver(this));

   // 允许子类提供定制初始化 XmlBeanDefinitionReader
   initBeanDefinitionReader(beanDefinitionReader);
    // 真正加载 beanDefinition
   loadBeanDefinitions(beanDefinitionReader);
}

进入 loadBeanDefinitions() 重载方法

protected void loadBeanDefinitions(XmlBeanDefinitionReader reader) throws BeansException, IOException {
   Resource[] configResources = getConfigResources();
   if (configResources != null) {
      reader.loadBeanDefinitions(configResources);
   }
   String[] configLocations = getConfigLocations();
   if (configLocations != null) {
      reader.loadBeanDefinitions(configLocations);
   }
}

进入 XmlBeanDefinitionReader 的父类 AbstractBeanDefinitionReader 中的 loadBeanDefinitions() 方法

public int loadBeanDefinitions(String... locations) throws BeanDefinitionStoreException {
   Assert.notNull(locations, "Location array must not be null");
   int count = 0;
   for (String location : locations) {
      count += loadBeanDefinitions(location);
   }
   return count;
}

再次进入重载方法

public int loadBeanDefinitions(String location) throws BeanDefinitionStoreException {
   return loadBeanDefinitions(location, null);
}

public int loadBeanDefinitions(String location, @Nullable Set<Resource> actualResources) throws BeanDefinitionStoreException {
   ResourceLoader resourceLoader = getResourceLoader();
   if (resourceLoader == null) {
      throw new BeanDefinitionStoreException(
            "Cannot load bean definitions from location [" + location + "]: no ResourceLoader available");
   }

   if (resourceLoader instanceof ResourcePatternResolver) {
      // Resource pattern matching available.
      try {
         Resource[] resources = ((ResourcePatternResolver) resourceLoader).getResources(location);
         // 加载 beanDefinitions
         int count = loadBeanDefinitions(resources);
         if (actualResources != null) {
            Collections.addAll(actualResources, resources);
         }
         if (logger.isTraceEnabled()) {
            logger.trace("Loaded " + count + " bean definitions from location pattern [" + location + "]");
         }
         return count;
      }
      catch (IOException ex) {
         throw new BeanDefinitionStoreException(
               "Could not resolve bean definition resource pattern [" + location + "]", ex);
      }
   }
   else {
      // Can only load single resources by absolute URL.
      Resource resource = resourceLoader.getResource(location);
      int count = loadBeanDefinitions(resource);
      if (actualResources != null) {
         actualResources.add(resource);
      }
      if (logger.isTraceEnabled()) {
         logger.trace("Loaded " + count + " bean definitions from location [" + location + "]");
      }
      return count;
   }
}

public int loadBeanDefinitions(Resource... resources) throws BeanDefinitionStoreException {
   Assert.notNull(resources, "Resource array must not be null");
   int count = 0;
   for (Resource resource : resources) {
      count += loadBeanDefinitions(resource);
   }
   return count;
}

进入子类 XmlBeanDefinitionReader中的 loadBeanDefinitions() 方法

public int loadBeanDefinitions(Resource resource) throws BeanDefinitionStoreException {
   return loadBeanDefinitions(new EncodedResource(resource));
}

进入重载方法

public int loadBeanDefinitions(EncodedResource encodedResource) throws BeanDefinitionStoreException {
   Assert.notNull(encodedResource, "EncodedResource must not be null");
   if (logger.isTraceEnabled()) {
      logger.trace("Loading XML bean definitions from " + encodedResource);
   }

   Set<EncodedResource> currentResources = this.resourcesCurrentlyBeingLoaded.get();

   if (!currentResources.add(encodedResource)) {
      throw new BeanDefinitionStoreException(
            "Detected cyclic loading of " + encodedResource + " - check your import definitions!");
   }

   try (InputStream inputStream = encodedResource.getResource().getInputStream()) {
      InputSource inputSource = new InputSource(inputStream);
      if (encodedResource.getEncoding() != null) {
         inputSource.setEncoding(encodedResource.getEncoding());
      }
       // 注意这里的doLoadBeanDefinition()方法，是spring真正处理加载bean定义的地方
      return doLoadBeanDefinitions(inputSource, encodedResource.getResource());
   }
   catch (IOException ex) {
      throw new BeanDefinitionStoreException(
            "IOException parsing XML document from " + encodedResource.getResource(), ex);
   }
   finally {
      currentResources.remove(encodedResource);
      if (currentResources.isEmpty()) {
         this.resourcesCurrentlyBeingLoaded.remove();
      }
   }
}

进入 doLoadBeanDefinitions() 方法，在本类XmlBeanDefinitionReader中

protected int doLoadBeanDefinitions(InputSource inputSource, Resource resource)
      throws BeanDefinitionStoreException {

   try {
      Document doc = doLoadDocument(inputSource, resource);
       // 注册 beanDefinitions
      int count = registerBeanDefinitions(doc, resource);
      if (logger.isDebugEnabled()) {
         logger.debug("Loaded " + count + " bean definitions from " + resource);
      }
      return count;
   }
   catch (BeanDefinitionStoreException ex) {
      throw ex;
   }
   ...
}

4.1.3 注册BeanDefinitions

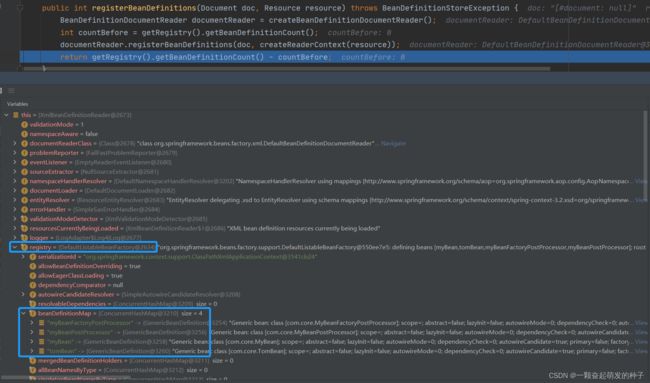

进入 registerBeanDefinitions()方法，在本类XmlBeanDefinitionReader中

public int registerBeanDefinitions(Document doc, Resource resource) throws BeanDefinitionStoreException {
   BeanDefinitionDocumentReader documentReader = createBeanDefinitionDocumentReader();
   int countBefore = getRegistry().getBeanDefinitionCount();
    // 注意这里将 IoC 容器中的 beanDefinition都注册
   documentReader.registerBeanDefinitions(doc, createReaderContext(resource));
   return getRegistry().getBeanDefinitionCount() - countBefore;
}

DeafaultBeanDefinitionDocumentReader中的registerBeanDefinitions()方法

public void registerBeanDefinitions(Document doc, XmlReaderContext readerContext) {
   this.readerContext = readerContext;
   doRegisterBeanDefinitions(doc.getDocumentElement());
}

protected void doRegisterBeanDefinitions(Element root) {

   BeanDefinitionParserDelegate parent = this.delegate;
   this.delegate = createDelegate(getReaderContext(), root, parent);

   if (this.delegate.isDefaultNamespace(root)) {
      String profileSpec = root.getAttribute(PROFILE_ATTRIBUTE);
      if (StringUtils.hasText(profileSpec)) {
         String[] specifiedProfiles = StringUtils.tokenizeToStringArray(
               profileSpec, BeanDefinitionParserDelegate.MULTI_VALUE_ATTRIBUTE_DELIMITERS);
         // We cannot use Profiles.of(...) since profile expressions are not supported
         // in XML config. See SPR-12458 for details.
         if (!getReaderContext().getEnvironment().acceptsProfiles(specifiedProfiles)) {
            if (logger.isDebugEnabled()) {
               logger.debug("Skipped XML bean definition file due to specified profiles [" + profileSpec +
                     "] not matching: " + getReaderContext().getResource());
            }
            return;
         }
      }
   }

   preProcessXml(root);
   parseBeanDefinitions(root, this.delegate);
   postProcessXml(root);

   this.delegate = parent;
}

4.1.4 解析BeanDefinitions

/**
 * 解析文档中根级别的元素: "import", "alias", "bean".
 * @param root: 文档的 DOM 根元素
 */
protected void parseBeanDefinitions(Element root, BeanDefinitionParserDelegate delegate) {
   if (delegate.isDefaultNamespace(root)) {
      NodeList nl = root.getChildNodes();
      for (int i = 0; i < nl.getLength(); i++) {
         Node node = nl.item(i);
         if (node instanceof Element) {
            Element ele = (Element) node;
            if (delegate.isDefaultNamespace(ele)) {
               parseDefaultElement(ele, delegate);
            }
            else {
               delegate.parseCustomElement(ele);
            }
         }
      }
   }
   else {
      delegate.parseCustomElement(root);
   }
}

进入到 parseDefaultElement() 方法中

private void parseDefaultElement(Element ele, BeanDefinitionParserDelegate delegate) {
   if (delegate.nodeNameEquals(ele, IMPORT_ELEMENT)) {
      importBeanDefinitionResource(ele);
   }
   else if (delegate.nodeNameEquals(ele, ALIAS_ELEMENT)) {
      processAliasRegistration(ele);
   }
   else if (delegate.nodeNameEquals(ele, BEAN_ELEMENT)) {
      processBeanDefinition(ele, delegate);
   }
   else if (delegate.nodeNameEquals(ele, NESTED_BEANS_ELEMENT)) {
      // recurse
      doRegisterBeanDefinitions(ele);
   }
}

解析bean元素，进入 processBeanDefinition() 方法

注册完之后，在XmlBeanDefinitionReader对象中可看见registry.beanDefinitionMap已加载了在xml文件中配置的beans

至此，我们已经清楚知道了 xml 文件中的元数据bean对象是如何注册并加载至BeanFactory中的。

4.2 BeanFactory预准备工作

进入prepareBeanFactory(beanFactory)方法，是AbstractApplicationContext类中的方法

/**
 * 配置工厂的标准上下文特性，例如上下文的类加载器和后置处理器。
 */
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
   // 设置应用上下文的类加载器
   beanFactory.setBeanClassLoader(getClassLoader());
   if (!shouldIgnoreSpel) {
      //设置表达式解析器，用来解析BeanDefinition中的带有表达式的值
      beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
   }i
   beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));

   // 配置后置处理器，主要的作用就是在spring实例化bean的前后做一些操作
   beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
   // 忽略自动装配的类，这些类都不能使用@Resource或者@Autowired自动装配获取对象
   beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
   beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
   beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
   beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
   beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
   beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
   beanFactory.ignoreDependencyInterface(ApplicationStartupAware.class);

   // BeanFactory 接口未在普通工厂中注册为可解析类型。
   // MessageSource 注册（并为自动装配找到）为一个 bean。
   // 注册可解析的自动装配类
   beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
   beanFactory.registerResolvableDependency(ResourceLoader.class, this);
   beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
   beanFactory.registerResolvableDependency(ApplicationContext.class, this);

   // 将用于检测内部 bean 的早期后处理器注册为 ApplicationListeners。
   beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));

   // 检测 LoadTimeWeaver 并准备编织（如果找到）
   if (!NativeDetector.inNativeImage() && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
      beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
      // 为类型匹配设置一个临时的类加载器
      beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
   }

   //
   // 将下面这些类注册到容器中，使用registerSingleton方法注册，我们可以直接从容器中获取这些类的对象使用
   if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
      beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
   }
   if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
      beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
   }
   if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
      beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
   }
   if (!beanFactory.containsLocalBean(APPLICATION_STARTUP_BEAN_NAME)) {
      beanFactory.registerSingleton(APPLICATION_STARTUP_BEAN_NAME, getApplicationStartup());
   }
}

4.3 实例化并调用BeanFactoryPostProcessors

实例化实现BeanFactoryPostProcessor接口的Bean，并调用BeanFactory后置处理器

/**
 * 实例化并调用所有已注册的 BeanFactoryPostProcessor beans，如果给定则遵守显式顺序。
 *
必须在单例实例化之前调用。
 */
protected void invokeBeanFactoryPostProcessors(ConfigurableListableBeanFactory beanFactory) {
    // 调用后置处理器注册委托类的方法调用，getBeanFactoryPostProcessors用于获取注册的全部的BeanFactoryPostProcessor
   PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors(beanFactory, getBeanFactoryPostProcessors());

   // 检测 LoadTimeWeaver 并准备编织，如果同时找到（例如，通过 ConfigurationClassPostProcessor 注册的 @Bean 方法）
   if (!NativeDetector.inNativeImage() && beanFactory.getTempClassLoader() == null && beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
      beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
      beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
   }
}

进入PostProcessorRegistrationDelegate.invokeBeanFactoryPostProcessors()方法

public static void invokeBeanFactoryPostProcessors(
      ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {

   // 如果有的话，首先调用 BeanDefinitionRegistryPostProcessors。
   Set<String> processedBeans = new HashSet<>();

   // 如果beanFactory是BeanDefinitionRegistry的子类，BeanDefinitionRegistry使用来向注册表中注册Bean的元信息的(BeanDefinition)
   if (beanFactory instanceof BeanDefinitionRegistryi) {
      BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
      // 存放BeanFactoryPostProcessor
      List<BeanFactoryPostProcessor> regularPostProcessors = new ArrayList<>();
      // 存放BeanDefinitionRegistryPostProcessor
      List<BeanDefinitionRegistryPostProcessor> registryProcessors = new ArrayList<>();

      // 遍历传入的beanFactoryPostProcessors列表
      for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
         // 判断是否为BeanDefinitionRegistryPostProcessor子类
         if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
            BeanDefinitionRegistryPostProcessor registryProcessor =
                  (BeanDefinitionRegistryPostProcessor) postProcessor;
            // 调用BeanDefinitionRegistry的后置处理器
            registryProcessor.postProcessBeanDefinitionRegistry(registry);
            registryProcessors.add(registryProcessor);
         }
         else {
            regularPostProcessors.add(postProcessor);
         }
      }

      // 不要在这里初始化 FactoryBeans：我们需要让所有常规 bean 保持未初始化状态，
	  // 以便让 bean 工厂后置处理器应用于它们！将实现 PriorityOrdered、Ordered
	  // 和其他的 BeanDefinitionRegistryPostProcessors 分开。
      List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<>();

      // 首先，调用实现 PriorityOrdered 的 BeanDefinitionRegistryPostProcessors。
      String[] postProcessorNames =
            beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
      for (String ppName : postProcessorNames) {
         if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
            currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
            processedBeans.add(ppName);
         }
      }
      sortPostProcessors(currentRegistryProcessors, beanFactory);
      registryProcessors.addAll(currentRegistryProcessors);
      invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry, beanFactory.getApplicationStartup());
      currentRegistryProcessors.clear();

      // 接下来，调用实现 Ordered 的 BeanDefinitionRegistryPostProcessors。
      postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
      for (String ppName : postProcessorNames) {
         if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
            currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
            processedBeans.add(ppName);
         }
      }
      sortPostProcessors(currentRegistryProcessors, beanFactory);
      registryProcessors.addAll(currentRegistryProcessors);
      invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry, beanFactory.getApplicationStartup());
      currentRegistryProcessors.clear();

      // 最后，调用所有其他 BeanDefinitionRegistryPostProcessor，直到不再出现为止。
      boolean reiterate = true;
      while (reiterate) {
         reiterate = false;
         postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
         for (String ppName : postProcessorNames) {
            if (!processedBeans.contains(ppName)) {
               currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
               processedBeans.add(ppName);
               reiterate = true;
            }
         }
         sortPostProcessors(currentRegistryProcessors, beanFactory);
         registryProcessors.addAll(currentRegistryProcessors);
         invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry, beanFactory.getApplicationStartup());
         currentRegistryProcessors.clear();
      }

      // 现在，调用到目前为止处理的所有处理器的 postProcessBeanFactory 回调。
      invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
      invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
   }

   else {
      // Invoke factory processors registered with the context instance.
      invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
   }

   // Do not initialize FactoryBeans here: We need to leave all regular beans
   // uninitialized to let the bean factory post-processors apply to them!
   String[] postProcessorNames =
         beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);

   // Separate between BeanFactoryPostProcessors that implement PriorityOrdered,
   // Ordered, and the rest.
   List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
   List<String> orderedPostProcessorNames = new ArrayList<>();
   List<String> nonOrderedPostProcessorNames = new ArrayList<>();
   for (String ppName : postProcessorNames) {
      if (processedBeans.contains(ppName)) {
         // skip - already processed in first phase above
      }
      else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
         priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
      }
      else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
         orderedPostProcessorNames.add(ppName);
      }
      else {
         nonOrderedPostProcessorNames.add(ppName);
      }
   }

   // 首先，调用实现 PriorityOrdered 的 BeanFactoryPostProcessors。
   sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
   invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);

   // 接下来，调用实现 Ordered 的 BeanFactoryPostProcessors。
   List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());
   for (String postProcessorName : orderedPostProcessorNames) {
      orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
   }
   sortPostProcessors(orderedPostProcessors, beanFactory);
   invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);

   // 最后，调用所有其他 BeanFactoryPostProcessor。
   List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());
   for (String postProcessorName : nonOrderedPostProcessorNames) {
      nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
   }
   // 实例化BeanFactoryPostProcessor对象，并调用其实现方法
   invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);

   // 清除缓存的合并 bean 定义，因为后处理器可能已经修改了原始元数据，例如替换值中的占位符...
   beanFactory.clearMetadataCache();
}

4.3.1 实例化BeanFactoryPostProcessor

这行代码

beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class)

是实例化BeanFactoryPostProcessor对象。具体过程参考下节4.3.2

4.3.2 实例化Bean

进入getBean()方法，该方法位于AbstractBeanFactory类中

public Object getBean(String name) throws BeansException {
   return doGetBean(name, null, null, false);
}

进入重载方法

protected <T> T doGetBean(
      String name, @Nullable Class<T> requiredType, @Nullable Object[] args, boolean typeCheckOnly)
      throws BeansException {

   // 解析beanName，如果是以&开头，则去掉&；如果是别名，则获取到真正的名字
   String beanName = transformedBeanName(name);
   Object beanInstance;

   // 尝试检查单例缓存以查找手动注册的单例
   Object sharedInstance = getSingleton(beanName);
   // 如果已经存在，则返回
   if (sharedInstance != null && args == null) {
      if (logger.isTraceEnabled()) {
         if (isSingletonCurrentlyInCreation(beanName)) {
            logger.trace("Returning eagerly cached instance of singleton bean '" + beanName +
                  "' that is not fully initialized yet - a consequence of a circular reference");
         }
         else {
            logger.trace("Returning cached instance of singleton bean '" + beanName + "'");
         }
      }
      // 针对 FactoryBean 的处理
      beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, null);
   }

   else {
      // 如果该bean是 prototype 类型且当前正在创建并开启允许循环依赖，则抛出异常
      if (isPrototypeCurrentlyInCreation(beanName)) {
         throw new BeanCurrentlyInCreationException(beanName);
      }

      // 获取父类bean工厂
      BeanFactory parentBeanFactory = getParentBeanFactory();
      // 检查父类bean工厂中是否存在该对象
      if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
         // Not found -> check parent.
         String nameToLookup = originalBeanName(name);
         if (parentBeanFactory instanceof AbstractBeanFactory) {
            return ((AbstractBeanFactory) parentBeanFactory).doGetBean(
                  nameToLookup, requiredType, args, typeCheckOnly);
         }
         else if (args != null) {
            // Delegation to parent with explicit args.
            return (T) parentBeanFactory.getBean(nameToLookup, args);
         }
         else if (requiredType != null) {
            // No args -> delegate to standard getBean method.
            return parentBeanFactory.getBean(nameToLookup, requiredType);
         }
         else {
            return (T) parentBeanFactory.getBean(nameToLookup);
         }
      }

      if (!typeCheckOnly) {
         markBeanAsCreated(beanName);
      }

      StartupStep beanCreation = this.applicationStartup.start("spring.beans.instantiate")
            .tag("beanName", name);
      try {
         if (requiredType != null) {
            beanCreation.tag("beanType", requiredType::toString);
         }
         // 合并父子bean属性
         RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
         checkMergedBeanDefinition(mbd, beanName, args);

         // Guarantee initialization of beans that the current bean depends on.
         // 保证当前 bean 所依赖的 bean 的初始化配置。
         String[] dependsOn = mbd.getDependsOn();
         if (dependsOn != null) {
            for (String dep : dependsOn) {
               if (isDependent(beanName, dep)) {
                  throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                        "Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
               }
               registerDependentBean(dep, beanName);
               try {
                  getBean(dep);
               }
               catch (NoSuchBeanDefinitionException ex) {
                  throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                        "'" + beanName + "' depends on missing bean '" + dep + "'", ex);
               }
            }
         }

         // 创建bean实例对象
         if (mbd.isSingleton()) {
            sharedInstance = getSingleton(beanName, () -> {
               try {
                  return createBean(beanName, mbd, args);
               }
               catch (BeansException ex) {
                  /**
                   * 从单例缓存中显式删除实例：它可能已被创建过程急切地放置在那里，以允许循环引用解析。
                   * 还删除接收到该 bean 的临时引用的所有 bean。
                   */
                  destroySingleton(beanName);
                  throw ex;
               }
            });
            beanInstance = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
         }

         else if (mbd.isPrototype()) {
            // It's a prototype -> create a new instance.
            Object prototypeInstance = null;
            try {
               beforePrototypeCreation(beanName);
               prototypeInstance = createBean(beanName, mbd, args);
            }
            finally {
               afterPrototypeCreation(beanName);
            }
            beanInstance = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
         }

         else {
            String scopeName = mbd.getScope();
            if (!StringUtils.hasLength(scopeName)) {
               throw new IllegalStateException("No scope name defined for bean ´" + beanName + "'");
            }
            Scope scope = this.scopes.get(scopeName);
            if (scope == null) {
               throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
            }
            try {
               Object scopedInstance = scope.get(beanName, () -> {
                  beforePrototypeCreation(beanName);
                  try {
                     return createBean(beanName, mbd, args);
                  }
                  finally {
                     afterPrototypeCreation(beanName);
                  }
               });
               beanInstance = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
            }
            catch (IllegalStateException ex) {
               throw new ScopeNotActiveException(beanName, scopeName, ex);
            }
         }
      }
      catch (BeansException ex) {
         beanCreation.tag("exception", ex.getClass().toString());
         beanCreation.tag("message", String.valueOf(ex.getMessage()));
         cleanupAfterBeanCreationFailure(beanName);
         throw ex;
      }
      finally {
         beanCreation.end();
      }
   }

   return adaptBeanInstance(name, beanInstance, requiredType);
}

重点分析getSingleton()方法，该方法位于DefaultSingletonBeanRegistry类

/**
 * 返回以给定名称注册的（原始）单例对象，如果尚未注册则创建并注册一个新对象。
 * @param beanName the name of the bean
 * @param singletonFactory the ObjectFactory to lazily create the singleton
 * with, if necessary
 * @return the registered singleton object
 */
public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
   Assert.notNull(beanName, "Bean name must not be null");
   synchronized (this.singletonObjects) {
      // 从一级缓存单例池中获取bean
      Object singletonObject = this.singletonObjects.get(beanName);
      if (singletonObject == null) {
         // 如果该bean正在销毁，则抛出异常
         if (this.singletonsCurrentlyInDestruction) {
            throw new BeanCreationNotAllowedException(beanName,
                  "Singleton bean creation not allowed while singletons of this factory are in destruction " +
                  "(Do not request a bean from a BeanFactory in a destroy method implementation!)");
         }
         if (logger.isDebugEnabled()) {
            logger.debug("Creating shared instance of singleton bean '" + beanName + "'");
         }
         //在真正创建该bean对象前，先标识该bean正在被创建
         beforeSingletonCreation(beanName);
         boolean newSingleton = false;
         boolean recordSuppressedExceptions = (this.suppressedExceptions == null);
         if (recordSuppressedExceptions) {
            this.suppressedExceptions = new LinkedHashSet<>();
         }
         try {
            // 方法传进来的singletonObject调用
            singletonObject = singletonFactory.getObject();
            newSingleton = true;
         }
         catch (IllegalStateException ex) {
            // Has the singleton object implicitly appeared in the meantime ->
            // if yes, proceed with it since the exception indicates that state.
            singletonObject = this.singletonObjects.get(beanName);
            if (singletonObject == null) {
               throw ex;
            }
         }
         catch (BeanCreationException ex) {
            if (recordSuppressedExceptions) {
               for (Exception suppressedException : this.suppressedExceptions) {
                  ex.addRelatedCause(suppressedException);
               }
            }
            throw ex;
         }
         finally {
            if (recordSuppressedExceptions) {
               this.suppressedExceptions = null;
            }
            afterSingletonCreation(beanName);
         }
         if (newSingleton) {
            addSingleton(beanName, singletonObject);
         }
      }
      return singletonObject;
   }
}

进入方法传进来的singletonObject调用，即singletonFactory.getObject()获取的是

getSingleton(beanName, () -> {
               try {
                  return createBean(beanName, mbd, args);
               }
               catch (BeansException ex) {
                  /**
                   * 从单例缓存中显式删除实例：它可能已被创建过程急切地放置在那里，以允许循环引用解析。
                   * 还删除接收到该 bean 的临时引用的所有 bean。
                   */
                  destroySingleton(beanName);
                  throw ex;
               }
            });

里的createBean()方法返回的bean对象，该方法位于AbstractAutowireCapableBeanFactory类中

/**
 * 此类的核心方法：创建 bean 实例、填充 bean 实例、应用后处理器等。
 * @see #doCreateBean
 */
@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
      throws BeanCreationException {

   if (logger.isTraceEnabled()) {
      logger.trace("Creating instance of bean '" + beanName + "'");
   }
   RootBeanDefinition mbdToUse = mbd;

   /**
    * 确保此时已实际解析 bean 类，并在无法存储在共享合并 bean definition中的动态解析类的情况下克隆 bean definition。
    */
   Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
   if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
      mbdToUse = new RootBeanDefinition(mbd);
      mbdToUse.setBeanClass(resolvedClass);
   }

   // Prepare method overrides.
   try {
      mbdToUse.prepareMethodOverrides();
   }
   catch (BeanDefinitionValidationException ex) {
      throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
            beanName, "Validation of method overrides failed", ex);
   }

   try {
      // 让 BeanPostProcessors 有机会返回一个代理而不是目标 bean 实例。
      Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
      if (bean != null) {
         return bean;
      }
   }
   catch (Throwable ex) {
      throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
            "BeanPostProcessor before instantiation of bean failed", ex);
   }

   try {
      // 真正创建bean
      Object beanInstance = doCreateBean(beanName, mbdToUse, args);
      if (logger.isTraceEnabled()) {
         logger.trace("Finished creating instance of bean '" + beanName + "'");
      }
      return beanInstance;
   }
   catch (BeanCreationException | ImplicitlyAppearedSingletonException ex) {
      // A previously detected exception with proper bean creation context already,
      // or illegal singleton state to be communicated up to DefaultSingletonBeanRegistry.
      throw ex;
   }
   catch (Throwable ex) {
      throw new BeanCreationException(
            mbdToUse.getResourceDescription(), beanName, "Unexpected exception during bean creation", ex);
   }
}

进入正在创建bean实例的方法

/**
 * 实际创建指定的bean。此时已经进行了预创建处理，例如检查 {@code postProcessBeforeInstantiation} 回调。
 *
区分默认 bean 实例化、使用工厂方法和自动装配构造函数。
 *
 * @param beanName the name of the bean
 * @param mbd the merged bean definition for the bean
 * @param args explicit arguments to use for constructor or factory method invocation
 * @return a new instance of the bean
 * @throws BeanCreationException if the bean could not be created
 * @see #instantiateBean
 * @see #instantiateUsingFactoryMethod
 * @see #autowireConstructor
 */
protected Object doCreateBean(String beanName, RootBeanDefinition mbd, @Nullable Object[] args)
      throws BeanCreationException {

   // Instantiate the bean.
   BeanWrapper instanceWrapper = null;
   if (mbd.isSingleton()) {
      instanceWrapper = this.factoryBeanInstanceCache.remove(beanName);
   }
   if (instanceWrapper == null) {
      // 创建Bean实例，此时仅仅调用构造方法，还没有设置属性
      instanceWrapper = createBeanInstance(beanName, mbd, args);
   }
   Object bean = instanceWrapper.getWrappedInstance();
   Class<?> beanType = instanceWrapper.getWrappedClass();
   if (beanType != NullBean.class) {
      mbd.resolvedTargetType = beanType;
   }

   // Allow post-processors to modify the merged bean definition.
   synchronized (mbd.postProcessingLock) {
      if (!mbd.postProcessed) {
         try {
            applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
         }
         catch (Throwable ex) {
            throw new BeanCreationException(mbd.getResourceDescription(), beanName,
                  "Post-processing of merged bean definition failed", ex);
         }
         mbd.postProcessed = true;
      }
   }

   /**
    * Eagerly cache singletons 以便即使在被 BeanFactoryAware 等生命周期接口触发时也能解决循环引用。
    * 是否暴露半成品对象已解决循环依赖问题
    * 条件：1.是单例bean 2.已开启循环依赖 3.当前正处于创建状态的单例bean
    */
   boolean earlySingletonExposure = (mbd.isSingleton() && this.allowCircularReferences &&
         isSingletonCurrentlyInCreation(beanName));
   if (earlySingletonExposure) {
      if (logger.isTraceEnabled()) {
         logger.trace("Eagerly caching bean '" + beanName +
               "' to allow for resolving potential circular references");
      }
      // 将该半成品对象添加至三级缓存singletonFactory中
      addSingletonFactory(beanName, () -> getEarlyBeanReference(beanName, mbd, bean));
   }

   // Initialize the bean instance.
   Object exposedObject = bean;
   try {
      // Bean 属性填充
      populateBean(beanName, mbd, instanceWrapper);
      // 调用初始化方法，应用 BeanPostProcessor 后置处理器
      exposedObject = initializeBean(beanName, exposedObject, mbd);
   }
   catch (Throwable ex) {
      if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
         throw (BeanCreationException) ex;
      }
      else {
         throw new BeanCreationException(
               mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
      }
   }

   if (earlySingletonExposure) {
      Object earlySingletonReference = getSingleton(beanName, false);
      if (earlySingletonReference != null) {
         if (exposedObject == bean) {
            exposedObject = earlySingletonReference;
         }
         else if (!this.allowRawInjectionDespiteWrapping && hasDependentBean(beanName)) {
            String[] dependentBeans = getDependentBeans(beanName);
            Set<String> actualDependentBeans = new LinkedHashSet<>(dependentBeans.length);
            for (String dependentBean : dependentBeans) {
               if (!removeSingletonIfCreatedForTypeCheckOnly(dependentBean)) {
                  actualDependentBeans.add(dependentBean);
               }
            }
            if (!actualDependentBeans.isEmpty()) {
               throw new BeanCurrentlyInCreationException(beanName,
                     "Bean with name '" + beanName + "' has been injected into other beans [" +
                     StringUtils.collectionToCommaDelimitedString(actualDependentBeans) +
                     "] in its raw version as part of a circular reference, but has eventually been " +
                     "wrapped. This means that said other beans do not use the final version of the " +
                     "bean. This is often the result of over-eager type matching - consider using " +
                     "'getBeanNamesForType' with the 'allowEagerInit' flag turned off, for example.");
            }
         }
      }
   }

   // 将 bean 注册为一次性的。
   try {
      registerDisposableBeanIfNecessary(beanName, bean, mbd);
   }
   catch (BeanDefinitionValidationException ex) {
      throw new BeanCreationException(
            mbd.getResourceDescription(), beanName, "Invalid destruction signature", ex);
   }

   return exposedObject;
}

4.3.2.1 初始化bean

// 初始化给定的 bean 实例，应用工厂回调以及 init 方法和 bean 后处理器。
protected Object initializeBean(String beanName, Object bean, @Nullable RootBeanDefinition mbd) {
   if (System.getSecurityManager() != null) {
      AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
         invokeAwareMethods(beanName, bean);
         return null;
      }, getAccessControlContext());
   }
   else {
      invokeAwareMethods(beanName, bean);
   }

   Object wrappedBean = bean;
   if (mbd == null || !mbd.isSynthetic()) {
      // 调用BeanPostProcessor的postBeforeInitialization()方法
      wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
   }

   try {
      // 调用bean的初始化方法
      invokeInitMethods(beanName, wrappedBean, mbd);
   }
   catch (Throwable ex) {
      throw new BeanCreationException(
            (mbd != null ? mbd.getResourceDescription() : null),
            beanName, "Invocation of init method failed", ex);
   }
   if (mbd == null || !mbd.isSynthetic()) {
      wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
   }

   return wrappedBean;
}

1. 调用BeanPostProcessor的postProcessBeforeInitialization()方法

前提：要先实例化bean

public Object applyBeanPostProcessorsBeforeInitialization(Object existingBean, String beanName)
      throws BeansException {

   Object result = existingBean;
   for (BeanPostProcessor processor : getBeanPostProcessors()) {
      Object current = processor.postProcessBeforeInitialization(result, beanName);
      if (current == null) {
         return result;
      }
      result = current;
   }
   return result;
}

2. 调用bean的初始化方法

protected void invokeInitMethods(String beanName, Object bean, @Nullable RootBeanDefinition mbd)
      throws Throwable {

   boolean isInitializingBean = (bean instanceof InitializingBean);
   if (isInitializingBean && (mbd == null || !mbd.isExternallyManagedInitMethod("afterPropertiesSet"))) {
      if (logger.isTraceEnabled()) {
         logger.trace("Invoking afterPropertiesSet() on bean with name '" + beanName + "'");
      }
      if (System.getSecurityManager() != null) {
         try {
            AccessController.doPrivileged((PrivilegedExceptionAction<Object>) () -> {
               ((InitializingBean) bean).afterPropertiesSet();
               return null;
            }, getAccessControlContext());
         }
         catch (PrivilegedActionException pae) {
            throw pae.getException();
         }
      }
      else {
         ((InitializingBean) bean).afterPropertiesSet();
      }
   }

   if (mbd != null && bean.getClass() != NullBean.class) {
      String initMethodName = mbd.getInitMethodName();
      if (StringUtils.hasLength(initMethodName) &&
            !(isInitializingBean && "afterPropertiesSet".equals(initMethodName)) &&
            !mbd.isExternallyManagedInitMethod(initMethodName)) {
         invokeCustomInitMethod(beanName, bean, mbd);
      }
   }
}

3. 调用BeanPostProcessor的postProcessAfterInitialization()方法

public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
      throws BeansException {

   Object result = existingBean;
   for (BeanPostProcessor processor : getBeanPostProcessors()) {
      Object current = processor.postProcessAfterInitialization(result, beanName);
      if (current == null) {
         return result;
      }
      result = current;
   }
   return result;
}

4.3.3 实例化BeanFactoryPostProcessor对象，并调用postProcessBeanFactory方法

private static void invokeBeanFactoryPostProcessors(
      Collection<? extends BeanFactoryPostProcessor> postProcessors, ConfigurableListableBeanFactory beanFactory) {

   for (BeanFactoryPostProcessor postProcessor : postProcessors) {
      StartupStep postProcessBeanFactory = beanFactory.getApplicationStartup().start("spring.context.bean-factory.post-process")
            .tag("postProcessor", postProcessor::toString);
      //调用beanFactory的实现方法postProcessBeanFactory()
      postProcessor.postProcessBeanFactory(beanFactory);
      postProcessBeanFactory.end();
   }
}

4.4 注册BeanPostProcessors

/**
 * 实例化并注册所有 BeanPostProcessor bean，如果给定则遵守显式顺序。
 *
必须在应用程序 bean 的任何实例化之前调用。
 */
protected void registerBeanPostProcessors(ConfigurableListableBeanFactory beanFactory) {
   PostProcessorRegistrationDelegate.registerBeanPostProcessors(beanFactory, this);
}

进入PostProcessor注册委托类，查看registerBeanPostProcessors()方法

public static void registerBeanPostProcessors(
      ConfigurableListableBeanFactory beanFactory, AbstractApplicationContext applicationContext) {

   String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);

   // 注册 BeanPostProcessorChecker，它会在 BeanPostProcessor 实例化期间创建一个 bean 时记录一条信息消息，
   // 即当一个 bean 不符合所有 BeanPostProcessors 处理的条件时。
   int beanProcessorTargetCount = beanFactory.getBeanPostProcessorCount() + 1 + postProcessorNames.length;
   beanFactory.addBeanPostProcessor(new BeanPostProcessorChecker(beanFactory, beanProcessorTargetCount));

   // 将实现 PriorityOrdered、Ordered 和其他的 BeanPostProcessor 分开。
   List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList<>();
   List<BeanPostProcessor> internalPostProcessors = new ArrayList<>();
   List<String> orderedPostProcessorNames = new ArrayList<>();
   List<String> nonOrderedPostProcessorNames = new ArrayList<>();
   for (String ppName : postProcessorNames) {
      if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
         BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
         priorityOrderedPostProcessors.add(pp);
         if (pp instanceof MergedBeanDefinitionPostProcessor) {
            internalPostProcessors.add(pp);
         }
      }
      else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
         orderedPostProcessorNames.add(ppName);
      }
      else {
         nonOrderedPostProcessorNames.add(ppName);
      }
   }

   // 首先，注册实现 PriorityOrdered 的 BeanPostProcessors。
   sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
   registerBeanPostProcessors(beanFactory, priorityOrderedPostProcessors);

   // 接下来，注册实现 Ordered 的 BeanPostProcessors。
   List<BeanPostProcessor> orderedPostProcessors = new ArrayList<>(orderedPostProcessorNames.size());
   for (String ppName : orderedPostProcessorNames) {
      BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
      orderedPostProcessors.add(pp);
      if (pp instanceof MergedBeanDefinitionPostProcessor) {
         internalPostProcessors.add(pp);
      }
   }
   sortPostProcessors(orderedPostProcessors, beanFactory);
   registerBeanPostProcessors(beanFactory, orderedPostProcessors);

   // 现在，注册所有常规的 BeanPostProcessor。
   List<BeanPostProcessor> nonOrderedPostProcessors = new ArrayList<>(nonOrderedPostProcessorNames.size());
   for (String ppName : nonOrderedPostProcessorNames) {
      // 实例化BeanPostProcessor
      BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
      nonOrderedPostProcessors.add(pp);
      if (pp instanceof MergedBeanDefinitionPostProcessor) {
         internalPostProcessors.add(pp);
      }
   }
   registerBeanPostProcessors(beanFactory, nonOrderedPostProcessors);

   // 最后，重新注册所有内部的 BeanPostProcessor。
   sortPostProcessors(internalPostProcessors, beanFactory);
   registerBeanPostProcessors(beanFactory, internalPostProcessors);

   // 重新注册用于将内部 bean 检测为 ApplicationListeners 的后处理器，将其移动到处理器链的末尾（用于获取代理等）。
   beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(applicationContext));
}

4.4.1 实例化BeanPostProcessor

进入beanFactory.getBean()方法，这块与上节实例化Bean步骤一致。

4.4.2 注册BeanPostProcessors

进入registerBeanPostProcessors()方法内部

/**
 * Register the given BeanPostProcessor beans.
 */
private static void registerBeanPostProcessors(
      ConfigurableListableBeanFactory beanFactory, List<BeanPostProcessor> postProcessors) {

   if (beanFactory instanceof AbstractBeanFactory) {
      // Bulk addition is more efficient against our CopyOnWriteArrayList there
      ((AbstractBeanFactory) beanFactory).addBeanPostProcessors(postProcessors);
   }
   else {
      for (BeanPostProcessor postProcessor : postProcessors) {
         beanFactory.addBeanPostProcessor(postProcessor);
      }
   }
}

进入AbstractBeanFactory类的addBeanPostProcessors()方法

/**
 * 添加新的 BeanPostProcessors，它将应用于此工厂创建的 bean。在出厂配置期间调用。
 */
public void addBeanPostProcessors(Collection<? extends BeanPostProcessor> beanPostProcessors) {
   this.beanPostProcessors.removeAll(beanPostProcessors);
   this.beanPostProcessors.addAll(beanPostProcessors);
}

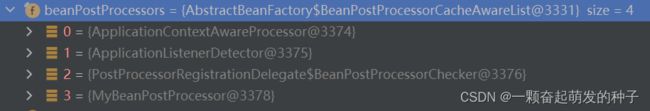

注册完之后，查看BeanFactory中的beanPostProcessors，可以发现MyBeanPostProcessors已成功加载。

4.5 完成beanFactory 的初始化

protected void finishBeanFactoryInitialization(ConfigurableListableBeanFactory beanFactory) {
   // Initialize conversion service for this context.
   if (beanFactory.containsBean(CONVERSION_SERVICE_BEAN_NAME) &&
         beanFactory.isTypeMatch(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class)) {
      beanFactory.setConversionService(
            beanFactory.getBean(CONVERSION_SERVICE_BEAN_NAME, ConversionService.class));
   }

   /**
    * 如果之前没有注册任何 BeanFactoryPostProcessor（例如 PropertySourcesPlaceholderConfigurer bean），
    * 则注册一个默认的嵌入值解析器：此时，主要用于注释属性值的解析。
    */
   if (!beanFactory.hasEmbeddedValueResolver()) {
      beanFactory.addEmbeddedValueResolver(strVal -> getEnvironment().resolvePlaceholders(strVal));
   }

   // 尽早初始化 LoadTimeWeaverAware bean 以允许尽早注册它们的转换器。
   String[] weaverAwareNames = beanFactory.getBeanNamesForType(LoadTimeWeaverAware.class, false, false);
   for (String weaverAwareName : weaverAwareNames) {
      getBean(weaverAwareName);
   }


   // 停止使用临时类加载器进行类型匹配。
   beanFactory.setTempClassLoader(null);


   // 允许缓存所有 bean 定义元数据，而不是期望进一步的更改。
   beanFactory.freezeConfiguration();

   // 实例化所有立即加载的单例bean
   beanFactory.preInstantiateSingletons();
}

4.5.1 实例化Bean

getBean()方法，和先前步骤一致。

4.5.2 实例化所有剩余的单例 bean

调用父类ConfigurableApplicationContext接口的实现类DefaultListableBeanFactory的preInstantiateSingletons()方法

public void preInstantiateSingletons() throws BeansException {
   if (logger.isTraceEnabled()) {
      logger.trace("Pre-instantiating singletons in " + this);
   }

   // 所有bean的名称
   List<String> beanNames = new ArrayList<>(this.beanDefinitionNames);

   // 触发所有非延迟加载单例bean的初始化，主要步骤为 getBean()
   for (String beanName : beanNames) {
      // 合并父BeanDefinition对象
      RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
      // 如果该bean是单例且非延迟加载的
      if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
         if (isFactoryBean(beanName)) {
            Object bean = getBean(FACTORY_BEAN_PREFIX + beanName);
            if (bean instanceof FactoryBean) {
               FactoryBean<?> factory = (FactoryBean<?>) bean;
               boolean isEagerInit;
               if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
                  isEagerInit = AccessController.doPrivileged(
                        (PrivilegedAction<Boolean>) ((SmartFactoryBean<?>) factory)::isEagerInit,
                        getAccessControlContext());
               }
               else {
                  isEagerInit = (factory instanceof SmartFactoryBean &&
                        ((SmartFactoryBean<?>) factory).isEagerInit());
               }
               if (isEagerInit) {
                  getBean(beanName);
               }
            }
         }
         else {
            // 实例化当前bean
            getBean(beanName);
         }
      }
   }

   // 触发所有适用 bean 的初始化后回调...
   for (String beanName : beanNames) {
      Object singletonInstance = getSingleton(beanName);
      if (singletonInstance instanceof SmartInitializingSingleton) {
         StartupStep smartInitialize = this.getApplicationStartup().start("spring.beans.smart-initialize")
               .tag("beanName", beanName);
         SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
         if (System.getSecurityManager() != null) {
            AccessController.doPrivileged((PrivilegedAction<Object>) () -> {
               smartSingleton.afterSingletonsInstantiated();
               return null;
            }, getAccessControlContext());
         }
         else {
            smartSingleton.afterSingletonsInstantiated();
         }
         smartInitialize.end();
      }
   }
}

也就是在这里实例化出自定义的myBean和tomBean，以及调用BeanPostProcessor的实现方法postProcessBeforeInitialization()、myBean的afterPropertiesSet()方法和BeanPostProcessor的实现方法postProcessAfterInitialization()。
