[HBase]KeyValue and HFile create

转载自：http://iwinit.iteye.com/blog/1827527

HBase put数据时会先将数据写入内存，其内存结构是一个ConcurrentSkipListMap，其Comparator是KVComparator。

keyvalue对象结构

KVComparator的KeyValue对象比较过程

1.使用KeyComparator比较rowkey，结果是rowkey字节序从小到大

2.如果rowkey一样，则按column family比较，结果是column family字节序从小到大

3.如果column family一样，则按family+qualifier比较，结果是qualifier字节序从小到大

4.如果qualifier也一样，则按timestamp排序，结果是timestamp从大到小排序

5.如果timestamp也一样，则按type排序，delete在put之前

6.以上都一样，则按照memstoreTS排序，memstoreTS是原子递增id，不可能一样，结果是memstoreTS从大到小排序，越新的修改会排前面，方便scan

可见KeyValue对象在内存里其实是已经排序好了，flush生成文件的时候，只是简单的scan一下，设置maxVersion(在这里超过maxVersion的put自动失效了)，将每个KeyValue对象写入HDFS

Flush生成HFile的过程大抵如下

1.构造Writer，最新版本是HFileWriterV2，第2版

2.循环将KeyValue对象append到writer，这里会按block写入cache，默认64k，每64k，就要重新new一个block，每次finish一个block，就会添加一条索引记录到block index，到block index超过一定限制(默认124K)，则写入一个特殊的InlineBlock，代表这是一个索引块，HFile就是data block和inline block交替结构

3.KeyValue对象写完后，再将索引数据以inline block的形式全部写入，最后写入root index，fileInfo等信息。

HFile V2结构

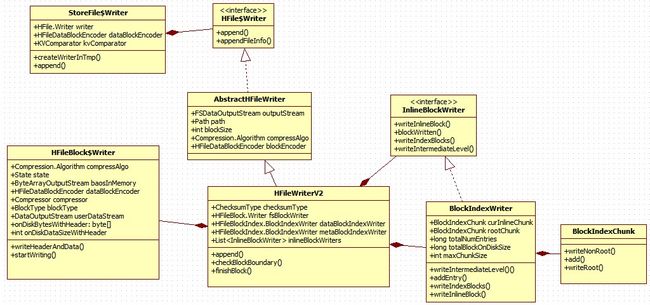

其实现类图如下



主流程

 Scan scan = new Scan();
     //最多保留的版本，默认为3
     scan.setMaxVersions(scanInfo.getMaxVersions());
     // Use a store scanner to find which rows to flush.
     // Note that we need to retain deletes, hence
     // treat this as a minor compaction.
     InternalScanner scanner = new StoreScanner(this, scan, Collections
         .singletonList(new CollectionBackedScanner(set, this.comparator)),
         ScanType.MINOR_COMPACT, this.region.getSmallestReadPoint(),
         HConstants.OLDEST_TIMESTAMP);
     try {
       // TODO:  We can fail in the below block before we complete adding this
       // flush to list of store files.  Add cleanup of anything put on filesystem
       // if we fail.
       synchronized (flushLock) {
         status.setStatus("Flushing " + this + ": creating writer");
         // A. Write the map out to the disk
         writer = createWriterInTmp(set.size());
         writer.setTimeRangeTracker(snapshotTimeRangeTracker);
         pathName = writer.getPath();
         try {
           List<KeyValue> kvs = new ArrayList<KeyValue>();
           boolean hasMore;
           do {
             hasMore = scanner.next(kvs);
             if (!kvs.isEmpty()) {
               for (KeyValue kv : kvs) {
                 // If we know that this KV is going to be included always, then let us
                 // set its memstoreTS to 0. This will help us save space when writing to disk.
                 if (kv.getMemstoreTS() <= smallestReadPoint) {
                   // let us not change the original KV. It could be in the memstore
                   // changing its memstoreTS could affect other threads/scanners.
                   kv = kv.shallowCopy();
                   kv.setMemstoreTS(0);
                 }
         //append写keyvalue
                 writer.append(kv);
                 flushed += this.memstore.heapSizeChange(kv, true);
               }
               kvs.clear();
             }
           } while (hasMore);
         } finally {
           // Write out the log sequence number that corresponds to this output
           // hfile.  The hfile is current up to and including logCacheFlushId.
           status.setStatus("Flushing " + this + ": appending metadata");
           writer.appendMetadata(logCacheFlushId, false);
           status.setStatus("Flushing " + this + ": closing flushed file");
     //写入元数据
           writer.close();
         }
       }
     } finally {
       flushedSize.set(flushed);
       scanner.close();
     }

 append过程

 private void append(final long memstoreTS, final byte[] key, final int koffset, final int klength,
       final byte[] value, final int voffset, final int vlength)
       throws IOException {
     //检查key顺序，返回是否和上一个key重复
     boolean dupKey = checkKey(key, koffset, klength);
     checkValue(value, voffset, vlength);
     //如果是新key，才检查block是否超过限制，也就是说同样的key保证在同一个block data里
     //如果block超过64K限制，则开始将block写入HDFS的outputstream，不flush，同时更新block index信息
     if (!dupKey) {
       checkBlockBoundary();
     }
     //初始化的时候重置状态，准备开始写入data block了
     if (!fsBlockWriter.isWriting())
       newBlock();

     // Write length of key and value and then actual key and value bytes.
     // Additionally, we may also write down the memstoreTS.
     {
     //userDataStream是临时的，如果block满了之后，会将里面的数据flush到HDFS的outputstream
     //这里将keyvalue对象顺序写入
       DataOutputStream out = fsBlockWriter.getUserDataStream();
       out.writeInt(klength);
       totalKeyLength += klength;
       out.writeInt(vlength);
       totalValueLength += vlength;
       out.write(key, koffset, klength);
       out.write(value, voffset, vlength);
       if (this.includeMemstoreTS) {
         WritableUtils.writeVLong(out, memstoreTS);
       }
     }

     // Are we the first key in this block?
     //block的第一个key，后续会作为data index的entry属性
     if (firstKeyInBlock == null) {
       // Copy the key.
       firstKeyInBlock = new byte[klength];
       System.arraycopy(key, koffset, firstKeyInBlock, 0, klength);
     }
     //上一个keyvalue
     lastKeyBuffer = key;
     lastKeyOffset = koffset;
     lastKeyLength = klength;
     entryCount++;
   }

 初始化开始写入

 /**
      * Starts writing into the block. The previous block's data is discarded.
      *
      * @return the stream the user can write their data into
      * @throws IOException
      */
     public DataOutputStream startWriting(BlockType newBlockType)
         throws IOException {
       if (state == State.BLOCK_READY && startOffset != -1) {
         // We had a previous block that was written to a stream at a specific
         // offset. Save that offset as the last offset of a block of that type.
     //保存着同类型block的上一个block的偏移量
         prevOffsetByType[blockType.getId()] = startOffset;
       }
     //当前block的偏移量
       startOffset = -1;
     //block类型，主要有data，block，index block，meta block
       blockType = newBlockType;
     //临时buffer
       baosInMemory.reset();
     //头数据，这里是占位用，后续finish block的时候会写入正式的header数据
       baosInMemory.write(DUMMY_HEADER);
     //开始写
       state = State.WRITING;

       // We will compress it later in finishBlock()
     //临时stream
       userDataStream = new DataOutputStream(baosInMemory);
       return userDataStream;
     }

 写着写着，可能block就满了，检查data block是否已满

 private void checkBlockBoundary() throws IOException {
 //默认64K
    if (fsBlockWriter.blockSizeWritten() < blockSize)
      return;
 //将之前写入的userDataStream里的data block写入HDFS的outputStream，添加索引记录
    finishBlock();
 //如果索引快满了，则将index block写入HDFS的outputStream
    writeInlineBlocks(false);
 //重置状态，进入’WRITING‘状态，等待写入
    newBlock();
  }

 具体finishBlock过程，flush数据到HDFS的outputstream

 /** Clean up the current block */
  private void finishBlock() throws IOException {
 //前置状态’WRITING‘,userDataStream有数据写入
    if (!fsBlockWriter.isWriting() || fsBlockWriter.blockSizeWritten() == 0)
      return;

    long startTimeNs = System.nanoTime();

    // Update the first data block offset for scanning.
 //第一个data block的偏移量
    if (firstDataBlockOffset == -1) {
      firstDataBlockOffset = outputStream.getPos();
    }

    // Update the last data block offset
 //上一个data block的偏移量
    lastDataBlockOffset = outputStream.getPos();

 //这里将userDataStream里的数据flush到HDFS的outputStream
    fsBlockWriter.writeHeaderAndData(outputStream);
 //在HDFS上写了多少字节，有可能压缩后，加上了checksum数据
    int onDiskSize = fsBlockWriter.getOnDiskSizeWithHeader();
 //更新data block的索引
    dataBlockIndexWriter.addEntry(firstKeyInBlock, lastDataBlockOffset,
        onDiskSize);
 //未压缩的数据字节数
    totalUncompressedBytes += fsBlockWriter.getUncompressedSizeWithHeader();

    HFile.offerWriteLatency(System.nanoTime() - startTimeNs);
    HFile.offerWriteData(onDiskSize);
 //更新block cache
    if (cacheConf.shouldCacheDataOnWrite()) {
      doCacheOnWrite(lastDataBlockOffset);
    }
  }

 写入HDFS stream过程

 public void writeHeaderAndData(FSDataOutputStream out) throws IOException {
       long offset = out.getPos();
       if (startOffset != -1 && offset != startOffset) {
         throw new IOException("A " + blockType + " block written to a "
             + "stream twice, first at offset " + startOffset + ", then at "
             + offset);
       }
     //这个块的开始位置
       startOffset = offset;
     //写
       writeHeaderAndData((DataOutputStream) out);
     }

     private void writeHeaderAndData(DataOutputStream out) throws IOException {
     //这个方法比较重要，当一个block需要flush到HDFS stream的时候，需要做数据做一些处理，比如压缩，编码等，设置状态为’READY‘
       ensureBlockReady();
     //onDiskBytesWithHeader是处理之后的数据，直接写入HDFS stream
       out.write(onDiskBytesWithHeader);
       if (compressAlgo == NONE) {
         if (onDiskChecksum == HConstants.EMPTY_BYTE_ARRAY) {
           throw new IOException("A " + blockType
               + " without compression should have checksums "
               + " stored separately.");
         }
     //不压缩的话，还要写入checksum
         out.write(onDiskChecksum);
       }
     }

 对buffer数据处理部分，包括压缩和编码等处理

 private void finishBlock() throws IOException {
     //先flush一下
       userDataStream.flush();

       // This does an array copy, so it is safe to cache this byte array.
     //拿到buffer中的数据，也就是当前所有写入的数据，未压缩
       uncompressedBytesWithHeader = baosInMemory.toByteArray();
     //上一个同类型的block偏移量
       prevOffset = prevOffsetByType[blockType.getId()];

       // We need to set state before we can package the block up for
       // cache-on-write. In a way, the block is ready, but not yet encoded or
       // compressed.
     //READY，准备flush
       state = State.BLOCK_READY;
     //encode
       encodeDataBlockForDisk();
     //压缩和checksum
       doCompressionAndChecksumming();
     }

 压缩和checksum，压缩之后，checksum数据直接写入onDiskBytesWithHeader，否则写入onDiskChecksum，不管压缩不压缩，都要写入block的header数据

 private void doCompressionAndChecksumming() throws IOException {
       // do the compression
       if (compressAlgo != NONE) {
         compressedByteStream.reset();
         compressedByteStream.write(DUMMY_HEADER);

         compressionStream.resetState();

         compressionStream.write(uncompressedBytesWithHeader, HEADER_SIZE,
             uncompressedBytesWithHeader.length - HEADER_SIZE);

         compressionStream.flush();
         compressionStream.finish();

         // generate checksums
         onDiskDataSizeWithHeader = compressedByteStream.size(); // data size

         // reserve space for checksums in the output byte stream
         ChecksumUtil.reserveSpaceForChecksums(compressedByteStream,
           onDiskDataSizeWithHeader, bytesPerChecksum);


         onDiskBytesWithHeader = compressedByteStream.toByteArray();
         putHeader(onDiskBytesWithHeader, 0, onDiskBytesWithHeader.length,
             uncompressedBytesWithHeader.length, onDiskDataSizeWithHeader);

        // generate checksums for header and data. The checksums are
        // part of onDiskBytesWithHeader itself.
        ChecksumUtil.generateChecksums(
          onDiskBytesWithHeader, 0, onDiskDataSizeWithHeader,
          onDiskBytesWithHeader, onDiskDataSizeWithHeader,
          checksumType, bytesPerChecksum);

         // Checksums are already part of onDiskBytesWithHeader
         onDiskChecksum = HConstants.EMPTY_BYTE_ARRAY;

         //set the header for the uncompressed bytes (for cache-on-write)
         putHeader(uncompressedBytesWithHeader, 0,
           onDiskBytesWithHeader.length + onDiskChecksum.length,
           uncompressedBytesWithHeader.length, onDiskDataSizeWithHeader);

       } else {
         // If we are not using any compression, then the
         // checksums are written to its own array onDiskChecksum.
         onDiskBytesWithHeader = uncompressedBytesWithHeader;

         onDiskDataSizeWithHeader = onDiskBytesWithHeader.length;
     //check份数
         int numBytes = (int)ChecksumUtil.numBytes(
                           uncompressedBytesWithHeader.length,
                           bytesPerChecksum);
     //checksum数据
         onDiskChecksum = new byte[numBytes];

         //set the header for the uncompressed bytes
     //修改header
         putHeader(uncompressedBytesWithHeader, 0,
           onDiskBytesWithHeader.length + onDiskChecksum.length,
           uncompressedBytesWithHeader.length, onDiskDataSizeWithHeader);

         ChecksumUtil.generateChecksums(
           uncompressedBytesWithHeader, 0, uncompressedBytesWithHeader.length,
           onDiskChecksum, 0,
           checksumType, bytesPerChecksum);
       }
     }

 data block处理完之后，更新索引，索引项由block的firstkey，开始的偏移量，dataSize组成。索引主要有2种，leaf-level chunk和root index chunk

   void add(byte[] firstKey, long blockOffset, int onDiskDataSize,
        long curTotalNumSubEntries) {
      // Record the offset for the secondary index
 //二级索引，记每个entry的偏移量
      secondaryIndexOffsetMarks.add(curTotalNonRootEntrySize);
 //下一个entry的偏移地址
      curTotalNonRootEntrySize += SECONDARY_INDEX_ENTRY_OVERHEAD
          + firstKey.length;
 //给root chunk用
      curTotalRootSize += Bytes.SIZEOF_LONG + Bytes.SIZEOF_INT
          + WritableUtils.getVIntSize(firstKey.length) + firstKey.length;
 //索引信息记录
      blockKeys.add(firstKey);
      blockOffsets.add(blockOffset);
      onDiskDataSizes.add(onDiskDataSize);
 //如果是root index chunk添加索引
      if (curTotalNumSubEntries != -1) {
        numSubEntriesAt.add(curTotalNumSubEntries);

        // Make sure the parallel arrays are in sync.
        if (numSubEntriesAt.size() != blockKeys.size()) {
          throw new IllegalStateException("Only have key/value count " +
              "stats for " + numSubEntriesAt.size() + " block index " +
              "entries out of " + blockKeys.size());
        }
      }
    }

 回到前头，finishBlock之后，数据都从buffer中flush到了HDFS的stream里。这个时候给index block一个机会，检查下是否已满，满的话，将索引块flush到HDFS

  private void writeInlineBlocks(boolean closing) throws IOException {
    for (InlineBlockWriter ibw : inlineBlockWriters) {
 //如果InlineBlock需要flush，就flush
      while (ibw.shouldWriteBlock(closing)) {
        long offset = outputStream.getPos();
        boolean cacheThisBlock = ibw.cacheOnWrite();
 //和data block写入一样，先start，再write
        ibw.writeInlineBlock(fsBlockWriter.startWriting(
            ibw.getInlineBlockType()));
        fsBlockWriter.writeHeaderAndData(outputStream);
        ibw.blockWritten(offset, fsBlockWriter.getOnDiskSizeWithHeader(),
            fsBlockWriter.getUncompressedSizeWithoutHeader());
        totalUncompressedBytes += fsBlockWriter.getUncompressedSizeWithHeader();

        if (cacheThisBlock) {
          doCacheOnWrite(offset);
        }
      }
    }
  }

 对于BlockIndexWriter来说规则是，maxChunkSize默认128K

 curInlineChunk.getNonRootSize() >= maxChunkSize;

 看看BlockIndexWriter是如何写的

 public void writeInlineBlock(DataOutput out) throws IOException {
      if (singleLevelOnly)
        throw new UnsupportedOperationException(INLINE_BLOCKS_NOT_ALLOWED);

      // Write the inline block index to the output stream in the non-root
      // index block format.
 //以leaf chunk写入
      curInlineChunk.writeNonRoot(out);

      // Save the first key of the inline block so that we can add it to the
      // parent-level index.
 //保留这个index block的firstkey，给后续多级索引用
      firstKey = curInlineChunk.getBlockKey(0);

      // Start a new inline index block
 //curInlineChunk初始化，后续索引数据继续写
      curInlineChunk.clear();
    }

 写入leaf chunk

  void writeNonRoot(DataOutput out) throws IOException {
      // The number of entries in the block.
 //从索引记录数
      out.writeInt(blockKeys.size());

      if (secondaryIndexOffsetMarks.size() != blockKeys.size()) {
        throw new IOException("Corrupted block index chunk writer: " +
            blockKeys.size() + " entries but " +
            secondaryIndexOffsetMarks.size() + " secondary index items");
      }

      // For each entry, write a "secondary index" of relative offsets to the
      // entries from the end of the secondary index. This works, because at
      // read time we read the number of entries and know where the secondary
      // index ends.
 //二级索引数据写入，因为每个索引entry是变长的，这个二级索引记录着每个entry的偏移信息，方便查找
      for (int currentSecondaryIndex : secondaryIndexOffsetMarks)
        out.writeInt(currentSecondaryIndex);

      // We include one other element in the secondary index to calculate the
      // size of each entry more easily by subtracting secondary index elements.
 //总大小
      out.writeInt(curTotalNonRootEntrySize);
 //索引数据
      for (int i = 0; i < blockKeys.size(); ++i) {
        out.writeLong(blockOffsets.get(i));
        out.writeInt(onDiskDataSizes.get(i));
        out.write(blockKeys.get(i));
      }
    }

 索引block写入HDFS stream后，更新rootChunk索引，rootChunk是一个对data block index块的索引结构，所有keyvalue都写完后，rootChunk才会flush

到HDFS stream，会进一步分裂多级结构，但是在循环写入的时候只有2级

 public void blockWritten(long offset, int onDiskSize, int uncompressedSize)
    {
      // Add leaf index block size
      totalBlockOnDiskSize += onDiskSize;
      totalBlockUncompressedSize += uncompressedSize;

      if (singleLevelOnly)
        throw new UnsupportedOperationException(INLINE_BLOCKS_NOT_ALLOWED);

      if (firstKey == null) {
        throw new IllegalStateException("Trying to add second-level index " +
            "entry with offset=" + offset + " and onDiskSize=" + onDiskSize +
            "but the first key was not set in writeInlineBlock");
      }
 //写入的时候，只有2级，因为rootChunk 128K足够存memstore的所有索引信息了
      if (rootChunk.getNumEntries() == 0) {
        // We are writing the first leaf block, so increase index level.
        expectNumLevels(1);
        numLevels = 2;
      }

      // Add another entry to the second-level index. Include the number of
      // entries in all previous leaf-level chunks for mid-key calculation.
 //root索引写入entry，totalNumEntries为当前子节点数，也就是leaf level chunk数目
      rootChunk.add(firstKey, offset, onDiskSize, totalNumEntries);
      firstKey = null;
    }

 以上就是循环的大抵过程，data block和data index block交替写入。当所有数据都写完后，开始做close操作，看HFileWriterV2的close操作

 public void close() throws IOException {
     if (outputStream == null) {
       return;
     }
     // Write out the end of the data blocks, then write meta data blocks.
     // followed by fileinfo, data block index and meta block index.
     //结尾数据写入stream
     finishBlock();
     //写index block数据
     writeInlineBlocks(true);
     //trailer信息
     FixedFileTrailer trailer = new FixedFileTrailer(2,
                                  HFileReaderV2.MAX_MINOR_VERSION);

     // Write out the metadata blocks if any.
     //meta block写入，V2里meta没用，V1里是用来存bloomfilter的
     if (!metaNames.isEmpty()) {
       for (int i = 0; i < metaNames.size(); ++i) {
         // store the beginning offset
         long offset = outputStream.getPos();
         // write the metadata content
         DataOutputStream dos = fsBlockWriter.startWriting(BlockType.META);
         metaData.get(i).write(dos);

         fsBlockWriter.writeHeaderAndData(outputStream);
         totalUncompressedBytes += fsBlockWriter.getUncompressedSizeWithHeader();

         // Add the new meta block to the meta index.
         metaBlockIndexWriter.addEntry(metaNames.get(i), offset,
             fsBlockWriter.getOnDiskSizeWithHeader());
       }
     }

     // Load-on-open section.

     // Data block index.
     //
     // In version 2, this section of the file starts with the root level data
     // block index. We call a function that writes intermediate-level blocks
     // first, then root level, and returns the offset of the root level block
     // index.

     //这里将rootChunk分裂成子树，如果rootChunk很大，按照128K分裂成子block并写入HDFS，如果一开始索引树有2层的话，结果索引树会有3层
     //也就是多了一个中间层
     long rootIndexOffset = dataBlockIndexWriter.writeIndexBlocks(outputStream);
     trailer.setLoadOnOpenOffset(rootIndexOffset);

     // Meta block index.
     //写入meta block
     metaBlockIndexWriter.writeSingleLevelIndex(fsBlockWriter.startWriting(
         BlockType.ROOT_INDEX), "meta");
     fsBlockWriter.writeHeaderAndData(outputStream);
     totalUncompressedBytes += fsBlockWriter.getUncompressedSizeWithHeader();

     if (this.includeMemstoreTS) {
       appendFileInfo(MAX_MEMSTORE_TS_KEY, Bytes.toBytes(maxMemstoreTS));
       appendFileInfo(KEY_VALUE_VERSION, Bytes.toBytes(KEY_VALUE_VER_WITH_MEMSTORE));
     }
     //写file info
     // File info
     writeFileInfo(trailer, fsBlockWriter.startWriting(BlockType.FILE_INFO));
     fsBlockWriter.writeHeaderAndData(outputStream);
     totalUncompressedBytes += fsBlockWriter.getUncompressedSizeWithHeader();

     // Load-on-open data supplied by higher levels, e.g. Bloom filters.
     for (BlockWritable w : additionalLoadOnOpenData){
       fsBlockWriter.writeBlock(w, outputStream);
       totalUncompressedBytes += fsBlockWriter.getUncompressedSizeWithHeader();
     }

     //写trailer
     // Now finish off the trailer.
     trailer.setNumDataIndexLevels(dataBlockIndexWriter.getNumLevels());
     trailer.setUncompressedDataIndexSize(
         dataBlockIndexWriter.getTotalUncompressedSize());
     trailer.setFirstDataBlockOffset(firstDataBlockOffset);
     trailer.setLastDataBlockOffset(lastDataBlockOffset);
     trailer.setComparatorClass(comparator.getClass());
     trailer.setDataIndexCount(dataBlockIndexWriter.getNumRootEntries());


     finishClose(trailer);

     fsBlockWriter.releaseCompressor();
   }
