OpenCV学习——图像基础与几何变换
0. 版本信息
产品 |
版本 |
Python |
3.7 |
Anaconda |
4.8.3 |
Jupyter |
6.0.3 |
OpenCV |
3.4.2 |
1. 导包
import cv2
import numpy as np
print(cv2.__version__)
2. 图像基础
2.1 图片的读取、展示、保存

- 保存与压缩图片
img = cv2.imread("test03.jpg", 1)
cv2.imwrite("test03_copy_0.jpg", img, [cv2.IMWRITE_JPEG_QUALITY, 0])
cv2.imwrite("test03_copy_10.jpg", img, [cv2.IMWRITE_JPEG_QUALITY, 10])
cv2.imwrite("test03_copy_50.jpg", img, [cv2.IMWRITE_JPEG_QUALITY, 50])
cv2.imwrite("test03_copy_80.jpg", img, [cv2.IMWRITE_JPEG_QUALITY, 80])
img = cv2.imread("test03.jpg", 1)
cv2.imwrite("test03_copy_0.png", img, [cv2.IMWRITE_PNG_COMPRESSION, 0])
cv2.imwrite("test03_copy_3.png", img, [cv2.IMWRITE_PNG_COMPRESSION, 3])
cv2.imwrite("test03_copy_5.png", img, [cv2.IMWRITE_PNG_COMPRESSION, 5])
cv2.imwrite("test03_copy_8.png", img, [cv2.IMWRITE_PNG_COMPRESSION, 8])
cv2.imwrite("test03_copy_10.png", img, [cv2.IMWRITE_PNG_COMPRESSION, 10])
2.2 图片的基本信息
2.3 修改图片像素点的颜色信息
- 修改像素点
img[90, 160] = [0, 0, 0]
print(img[90, 160])
img.itemset((90, 170, 0), 0)
img.itemset((90, 170, 1), 0)
img.itemset((90, 170, 2), 255)
print(img[90, 170])
[0 0 0]
[ 0 0 255]
- 画一条线
for i in range(0, 300):
img[100, i] = [0, 0, 255]
cv2.imshow("picture", img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()

2.3 拆分与合并颜色三通道
- 拆分与合并颜色三通道
b, g, r = cv2.split(img)
img = cv2.merge((b, g, r))
print(b)
[[163 163 162 ... 173 173 173]
[164 164 163 ... 175 175 175]
[165 165 164 ... 174 175 175]
...
[ 42 39 39 ... 51 52 52]
[ 49 41 38 ... 66 67 66]
[ 41 38 38 ... 96 95 95]]

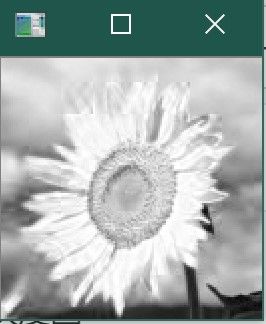

- 对应通道的灰度图
cv2.imshow('blue', b)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()
red_flower_img = img[180:310, 50:180][:, :, 2]
cv2.imshow("red_flower", red_flower_img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()


- 修改某块区域为只显示蓝色通道
for i in range(0, 400):
for j in range(0, 400):
img.itemset((i, j, 1), 0)
img.itemset((i, j, 2), 0)
cv2.imshow('blue', img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()

3. 绘图
3.1 线段、三角形、矩形、圆形、扇形、任意多边形
img = np.zeros((500, 500, 3), np.uint8)
cv2.line(img, (50, 50), (200, 200), (255, 0, 0))
cv2.line(img, (100, 100), (300, 100), (0, 255, 0), 10)
cv2.line(img, (100, 150), (300, 150), (0, 255, 0), 10, cv2.LINE_AA)
points = [(400, 300), (300, 360), (240, 240)]
cv2.line(img, points[0], points[1], (0, 0, 255))
cv2.line(img, points[1], points[2], (0, 0, 255))
cv2.line(img, points[2], points[0], (0, 0, 255))
cv2.rectangle(img, (360, 150), (460, 200), (100, 0, 0), -1)
cv2.circle(img, (200, 360), (30), (0, 100, 0), 3)
cv2.ellipse(img, (200, 400), (50, 80), 0, 0, 90, (0, 0, 100), -1)
points = np.array([[270, 180], [220, 190], [330, 150], [310, 240]])
print(points.shape)
points = points.reshape((-1, 1, 2))
print(points.shape)
print(points)
cv2.polylines(img, [points], True, (255, 255, 255))
cv2.imshow("img", img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()

3.2 文字、图片
img = cv2.imread("./test03.jpg", 1)
height, width, channels = img.shape
cv2.rectangle(img, (100, 110), (300, 150), (255, 255, 255), 2)
font = cv2.FONT_HERSHEY_SIMPLEX
cv2.putText(img, "Sun Flower", (110, 140), font, 1, (0, 0, 0), 1)
img2 = cv2.imread("./test03.jpg", 1)[150:400, 50:300]
height2, width2, channels2 = img2.shape
for i in range(0, height2):
for j in range(0, width2):
img[i, 400 + j] = img2[i, j]
cv2.imshow("img", img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()

4. 图像的几何变换
4.1 图像截取
flower_img = img[180:310, 50:180]
cv2.imshow("flower", flower_img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()

4.2 图像缩放
- 方式1
img = cv2.imread("./test03.jpg", 1)
height, width, channels = img.shape
dst_height = int(height / 2)
dst_width = int(width / 2)
dst_img = cv2.resize(img, (dst_width, dst_height))
cv2.imshow("dst_img", dst_img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()
- 方式2
img = cv2.imread("./test03.jpg", 1)
height, width, channels = img.shape
dst_height = int(height / 2)
dst_width = int(width / 2)
dst_img = np.zeros((dst_height, dst_width, 3), np.uint8)
print(dst_img.shape)
for i in range(0, dst_height):
for j in range(0, dst_width):
new_i = int(i * (height / dst_height))
new_j = int(j * (width / dst_width))
dst_img[i, j] = img[new_i, new_j]
cv2.imshow("dst_img", dst_img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()
- 方式3
img = cv2.imread("./test03.jpg", 1)
height, width, channels = img.shape
mat_scale = np.float32([[0.5, 0, 0], [0, 0.5, 0]])
dst_img = cv2.warpAffine(img, mat_scale, (int(width / 2), int(height / 2)))
cv2.imshow("dst_img", dst_img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()

4.3 图像移动
- 方式1
img = cv2.imread("./test03.jpg", 1)
height, width, channels = img.shape
matShift = np.float32([[1, 0, 100], [0, 1, 200]])
dst_img = cv2.warpAffine(img, matShift, (width, height))
cv2.imshow("dst_img", dst_img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()

- 方式2
img = cv2.imread("./test03.jpg", 1)
height, width, channels = img.shape
dst_img = np.zeros(img.shape, np.uint8)
for i in range(0, height):
for j in range(0, width - 100):
dst_img[i, j + 100] = img[i, j]
cv2.imshow("dst_img", dst_img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()
4.4 图像镜像
img = cv2.imread("./test03.jpg", 1)
height, width, channels = img.shape
dst_img = np.zeros((height * 2, width, channels), np.uint8)
for i in range(0, height):
for j in range(0, width):
dst_img[i, j] = img[i, j]
dst_img[height * 2 - i - 1, j] = img[i, j]
cv2.imshow("dst_img", dst_img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()

4.5 图像旋转
- 平面旋转
img = cv2.imread("./test03.jpg", 1)
height, width, channels = img.shape
mat_rotate = cv2.getRotationMatrix2D((width / 2, height / 2), 45, 0.5)
dst_img = cv2.warpAffine(img, mat_rotate, (width, height))
cv2.imshow("dst_img", dst_img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()

- 空间旋转
img = cv2.imread("./test03.jpg", 1)
height, width, channels = img.shape
mat_src = np.float32([[0, 0], [0, height - 1], [width - 1, 0]])
mat_dst = np.float32([[60, 60], [150, height - 150], [width - 250, 220]])
mat_affine = cv2.getAffineTransform(mat_src, mat_dst)
dst_img = cv2.warpAffine(img, mat_affine, (width, height))
cv2.imshow("dst_img", dst_img)
if cv2.waitKey() == ord("q"):
cv2.destroyAllWindows()
