wp7之换肤原理简单分析

纠结很久。。。感觉勉强过得去啦。还望各位大牛指点江山

百度找到这篇参考文章http://www.cnblogs.com/sonyye/archive/2012/03/12/2392679.html#2329255

还有这篇：http://www.cnblogs.com/xumingxiang/archive/2012/03/23/2413342.html



进入正文吧

1  UI代码很简单，一个listbox 和一个标题textblock，一个button按钮

<phone:PhoneApplicationPage

    x:Class="ChangeSkin.MainPage"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:phone="clr-namespace:Microsoft.Phone.Controls;assembly=Microsoft.Phone"

    xmlns:shell="clr-namespace:Microsoft.Phone.Shell;assembly=Microsoft.Phone"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"



    mc:Ignorable="d" d:DesignWidth="480" d:DesignHeight="768"

    FontFamily="{StaticResource PhoneFontFamilyNormal}"

    FontSize="{StaticResource PhoneFontSizeNormal}"

    Foreground="{StaticResource PhoneForegroundBrush}"

    SupportedOrientations="Portrait" Orientation="Portrait"

    shell:SystemTray.IsVisible="True">



    <!--LayoutRoot 是包含所有页面内容的根网格-->



    <Grid x:Name="LayoutRoot"  >

        <Grid.RowDefinitions>

            <RowDefinition Height="Auto"/>

            <RowDefinition Height="*"/>

        </Grid.RowDefinitions>



        <!--TitlePanel 包含应用程序的名称和页标题-->

        <StackPanel x:Name="TitlePanel" Grid.Row="0" Margin="12,17,0,28">

            <TextBlock x:Name="ApplicationTitle" Text="我的应用程序" />

            <TextBlock x:Name="PageTitle" Text="页面名称"  Margin="9,-7,0,0" Style="{StaticResource PhoneTextTitle1Style}"/>

        </StackPanel>



        <!--ContentPanel - 在此处放置其他内容-->

        <Grid x:Name="ContentPanel" Grid.Row="1" Margin="12,0,12,0">

            <ListBox Name="lb">

                <ListBox.ItemTemplate>

                    <DataTemplate>

                        <TextBlock   Text="{Binding}" Name="lbText"></TextBlock>

                    </DataTemplate>

                </ListBox.ItemTemplate>

            </ListBox>

            <Button Content="换皮肤" HorizontalAlignment="Left" Margin="157,471,0,0" VerticalAlignment="Top" Click="Button_Click_1"  />





        </Grid>

    </Grid>



</phone:PhoneApplicationPage>

View Code

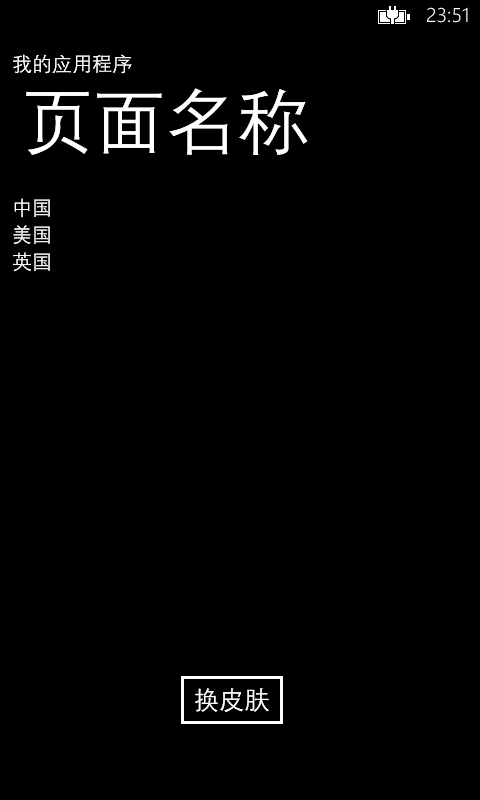

截图如下：

2 新建一个皮肤资源文件，

  (ps:这里比较繁琐：新建一个页面文件，删除cs文件，然后找一下这个路径资源文件来参考 C:\Program Files (x86)\Microsoft SDKs\Windows Phone\v7.1\Design\DarkBlue\System.Windows.xaml ，为啥微软不直接提供一个新建皮肤文件？？？？？)

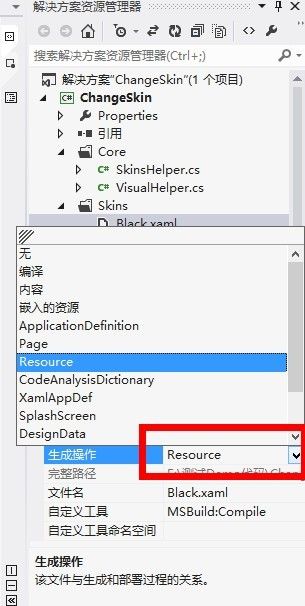

 设置Resource，非常重要啊,看下图



皮肤里面文件代码：

<ResourceDictionary

  xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

  xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

  xmlns:System="clr-namespace:System;assembly=mscorlib">

    <Style TargetType="TextBlock" x:Key="tbox">

        <Setter Property="Foreground" Value="White"></Setter>

    </Style>

</ResourceDictionary>

View Code

3、后台代码

using System;

using System.Collections.Generic;

using System.Linq;

using System.Text;

using System.Windows;



namespace ChangeSkin

{

    public class SkinsHelper

    {

        /// <summary>

        /// 得到皮肤资源文件

        /// </summary>

        /// <param name="Light"></param>

        /// <returns></returns>

        public static ResourceDictionary GetSkinResource(SkinsType Light = SkinsType.Green)

        {

            ResourceDictionary resourceDictionary = new ResourceDictionary();

            string uri = "/ChangeSkin;component/Skins/";

            //这里一定要设置Black.xaml生成操作为Resource

            switch (Light)

            {

                case SkinsType.Green: uri += "Green.xaml"; break;

                case SkinsType.Black: uri += "Black.xaml"; break;

                default: uri += "Green.xaml"; break;

            }

            Application.LoadComponent(resourceDictionary, new Uri(uri, UriKind.Relative));

            Application.Current.Resources.MergedDictionaries.Add(resourceDictionary);

            return resourceDictionary;

        }

    }



    public enum SkinsType

    {

        Green = 0,

        Black = 1

    }

}

View Code



4 工具类

using System;

using System.Net;

using System.Windows;

using System.Windows.Controls;

using System.Windows.Documents;

using System.Windows.Ink;

using System.Windows.Input;

using System.Windows.Media;

using System.Windows.Media.Animation;

using System.Windows.Shapes;

using System.Collections.Generic;



namespace JM.Common

{

    public class VisualHelper

    {

        //获取子类型

        public static T FindChildOfType<T>(DependencyObject root) where T : class

        {

            var queue = new Queue<DependencyObject>();

            queue.Enqueue(root);

            while (queue.Count > 0)

            {

                DependencyObject current = queue.Dequeue();

                for (int i = VisualTreeHelper.GetChildrenCount(current) - 1; 0 <= i; i--)

                {

                    var child = VisualTreeHelper.GetChild(current, i);

                    var typedChild = child as T;

                    if (typedChild != null)

                    {

                        return typedChild;

                    }

                    queue.Enqueue(child);

                }

            }

            return null;

        }

        public static List<T> GetVisualChildCollection<T>(object parent) where T : UIElement

        {

            List<T> visualCollection = new List<T>();

            GetVisualChildCollection(parent as DependencyObject, visualCollection);

            return visualCollection;

        }

        private static void GetVisualChildCollection<T>(DependencyObject parent, List<T> visualCollection) where T : UIElement

        {

            int count = VisualTreeHelper.GetChildrenCount(parent);

            for (int i = 0; i < count; i++)

            {

                DependencyObject child = VisualTreeHelper.GetChild(parent, i);

                if (child is T)

                {

                    visualCollection.Add(child as T);

                }

                else if (child != null)

                {

                    GetVisualChildCollection(child, visualCollection);

                }

            }

        }

    }

}

View Code





5 调用方法

 private void SetSkins(SkinsType skin = SkinsType.Black)

        {

            SkinsHelper.GetSkinResource(skin);

            this.ApplicationTitle.SetValue(TextBlock.StyleProperty, Application.Current.Resources["tbox"]);



            //listbox文字颜色样式改变

            List<TextBlock> tbList= VisualHelper.GetVisualChildCollection<TextBlock>(lb);

            foreach (TextBlock textBlock in tbList)

            {

                textBlock.SetValue(TextBlock.StyleProperty, Application.Current.Resources["tbox"]);

            }

        }

View Code





测试结果：
测试结果：
测试结果：文字改变绿色



下载代码



后记，如果想切换背景，添加更多效果，请增加样式，再写上对应调用样式代码
